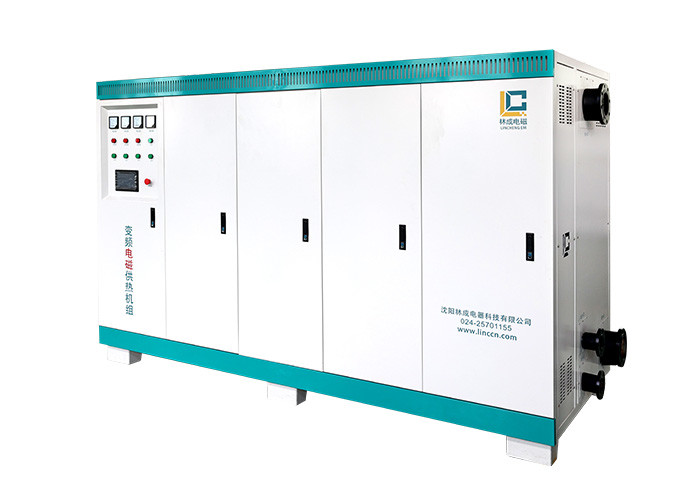

Industrial Intelligent Electric Boiler 700KW Intelligent Temperature Control Heating
Description Of Electric Heater Boiler Heating:
The electric heater boiler uses the electromagnetic induction principle to heat 1L water, and the power consumption is 0.117 degrees. Use an electric heating tube to heat 1L of water, and the power consumption is 0.289 degrees. Compared with the two phases, the electromagnetic induction principle is adopted for heating, and the power saving is about 2.5 times.
Product features: energy saving, environmental protection, low carbon, intelligent, safe and durable.
Electric Heater Boiler Technical Parameter:
| Serial number | Product model | Company | LC-L-700kw |
| 1 | Rated power | KW | 700 |
| 2 | Rated current | A | 1064 |
| 3 | Heating area | ㎡ | 7000-10000 |
| 4 | input voltage | 50HZ | 380V |
| 5 | Minimum flow of water pump configuration | L/min | 850 |
| 6 | Hot water yield 50 ℃ | L/min | 327.6 |
| 7 | Design thermal efficiency | ℃ | 98% |
| 8 | Maximum water temperature | ℃ | 85 |
| 9 | Low temperature protection temperature | ℃ | 5 |
| 10 | Overall dimension (length * width * height) | mm | 3500L*1200W*2000H |
| 11 | Water inlet and outlet interface | DN | 100 |
Technical Description Of Electric Heater Boiler:
1. The circulating water pump shall match the power of the electric heater boiler
The power of the electric heater boiler determines the hot water supply speed. The circulation speed of the water pump must be as close as possible to the hot water supply speed. If the circulation speed of the water pump is too small, the end temperature of the heat pipe network will not meet the heating standard. If the circulation speed of the water pump is too fast, the electric heater boiler will always operate at high power, resulting in a waste of electric energy. This is because too fast water flow will make the return water temperature closer to the outlet water temperature. The electric heater boiler also has to do the action of boiling water, resulting in a waste of electric energy. This is not necessarily the case. The whole cycle of some buildings will be very long. In this case, the whole cycle can be appropriately accelerated.
2. Safety factors shall be considered for the installation position of electric heater boiler
First, try to avoid children's contact. The functions of the electric heater boiler are relatively diversified. Children's misoperation may lead to changes in heating settings. Electric shock can also be caused in the same way. The installation position of the electromagnetic boiler shall be dry and ventilated to avoid installation in the kitchen and toilet. Because there is a risk of being flooded.
3. Irregularly check the water volume and pay attention to supplement
Water leakage in the pipe network is very common. Slight water leakage will not cause damage, but will reduce the heating effect. The electric heater boiler has the function of monitoring water volume, which is generally reflected in the panel warning or the water level gauge. Observe the water level frequently and supplement it in time to save power.
4. Install the exhaust valve
In the sealed pipe network, the heating water will produce a certain amount of gas, and the gas will be filled in the case of water leakage. In order to ensure the stability of the heating effect, it is necessary to install an exhaust valve and exhaust regularly.
