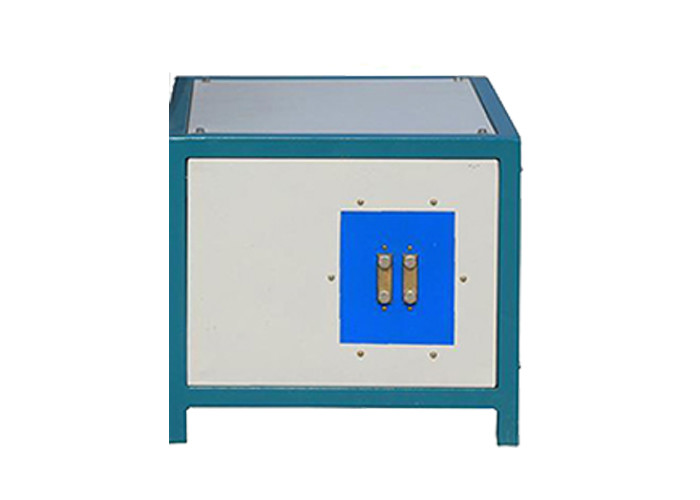

High Frequency Furnace Energy Simple Operation, Faster And More Convenient Startup High Frequency Electric Furnace
Advantages of high frequency furnace:
1. The high efficiency of the equipment reduces the use of energy and saves the production cost.
2. It is easy to control, does not pollute the environment, and improves working conditions.
3. It has full and multiple functions, and also has the function of automatic equipment protection.
4. Good energy saving effect, more than 50% energy saving than high frequency of electronic tube.
5. During the heating process, the workpiece is automatically fed and discharged without manual operation.
6. Fast heating speed, uniform heating and high heating efficiency.
Technical Parameters Of High Frequency Furnace:
Serial number |
Product model |
output power |
Oscillation frequency |
output | Cooling water pressure |
water temperature |
1 | WGH-15 | 15Kw | 50-100KHz | 220V | 0.2Mpa | <40℃ |
2 | WGH-25 | 25Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
3 | WGH-35 | 35Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
4 | WGH-40 | 40Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
5 | WGH-60 | 60Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
6 | WGH-80 | 80Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
7 | WGH-100 | 100Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
8 | WGH-120 | 120Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
9 | WGH-160 | 160Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <41℃ |
10 | WGH-200 | 200Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <42℃ |
High frequency furnace application:
1. Quenching of cutting tools and agricultural tools.
2. Heat transmission of steel pipes, steel plates and bars.
3. Smelting of metals.
4. Welding of elbows and copper parts.
