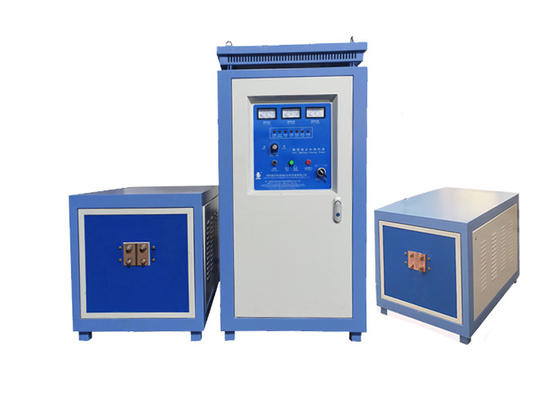

Electric Medium Frequency Induction Heating Equipment Furnace For Melting
discussible
MOQ
discussible
Price
Electric Medium Frequency Induction Heating Equipment Furnace For Melting
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, China
Brand Name: lincheng
Model Number: LC-ZP-135
High Light:

Electric Medium Frequency Induction Heating Equipment

,

Medium Frequency Induction Heating Equipment Furnace

,

Medium Frequency electric induction melting furnace

Payment & Shipping Terms
Packaging Details: Wooden case packaging
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Model: LC-ZP-135
Power: 135KW
Maximum Input Current:: 135A
Input Power:: 135kw
Oscillation Frequency: 14khz
Host Volume:: 354mm×354mm×484mm
Product Description

Medium Frequency Induction Heating Equipment Medium Frequency Induction Heating Electric Furnace



Working principle of intermediate frequency induction heating equipment:

Intermediate frequency induction heating equipment is a kind of equipment that rectifies three-phase power frequency alternating current and turns it into direct current, then converts the direct current into adjustable current, supplies the alternating current flowing through the capacitor and the induction coil, generates high-density magnetic lines of force in the induction coil, and cuts the metal materials contained in the induction coil, generating large eddy currents in the metal materials. This eddy current also has some properties of intermediate frequency current, that is, the free electrons of the metal itself will generate heat when flowing in the metal body with resistance. Intermediate frequency induction heating



Technical parameters of high frequency induction heating equipment:

Model: LC-ZP-135KW

Maximum input current: 135A

Input power: 135kW

Oscillation frequency: 13khz

Input voltage: 360v

Host volume:354mm×354mm×484mm

Cooling water pressure: 0.1-0.3mpa

Cooling water flow (main engine): 15L / min (0.1MPa)

Cooling water flow (transformer): 18L / min (0.1MPa)

Water temperature protection point: 50 ℃

Host weight: 40 ± 5% kg

Efficiency: 90%



Main uses of medium frequency induction heating equipment:

1. Hot forming: whole forging, partial forging, hot upsetting, hot rolling;

2. Metal melting: the (vacuum) melting, casting, forming and evaporation coating of gold, silver, copper, iron, aluminum and other metals;

3. Heat treatment: local or overall quenching, annealing, tempering and diathermy of various metals

4. Other applications of high-frequency heater: semiconductor single crystal growth, heat matching, bottle mouth heat sealing, toothpaste skin heat sealing, powder coating, metal implant plastic, etc

5. Welding: brazing of various metal products, welding of various cutter blades and saw teeth, welding of steel pipes and copper pipes, and welding of the same and different metals.
