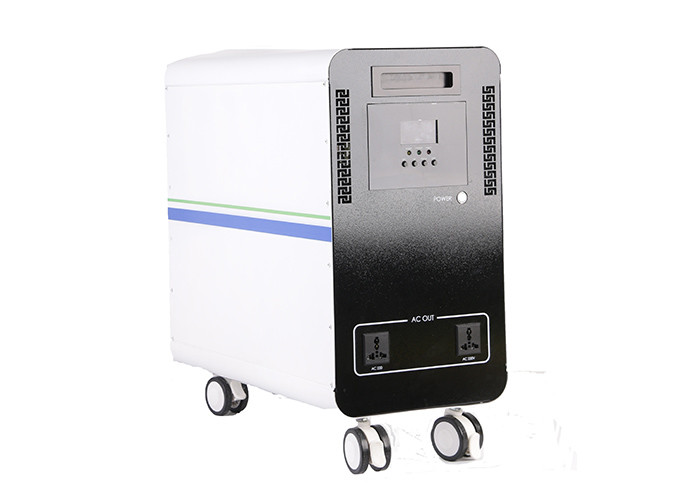

Multi Functional Outdoor Mobile Portable Power Station 220V Output

Product overview of Portable mobile power station:

Its products adopt the emergency access mode of AC power supply, and online access does not need to be interrupted. Standard interfaces are configured with AC input, AC output and DC output functions, which can meet the use and standby requirements of AC or DC loads in different scenarios; Moreover, the product adopts the portable aluminum alloy pull rod box design, which has high strength, beautiful appearance, convenient handling, and can adapt to the working and running in the environment of - 20 ℃ ~ + 50 ℃; The lithium iron phosphate battery used in the product not only has the advantages of high specific energy, small volume, light weight and long cycle life, but also has the functions of overcharge, over discharge, over-current, short circuit and temperature protection of the battery pack, and overcharge and over discharge protection of the single battery.

Specifications of Portable mobile power station​:

Power: 3.1KW

System capacity: 3.1kwh

Full voltage: 36V

Vent voltage: 21V

Output current: 130A

Maximum output value: 165A

Nominal voltage: DC24V

Output AC: AC230V / 110V

Working temperature: minus 20 ℃ - 50 ℃

Weight: 38kg

Bidirectional conversion efficiency: > 85%

Product features of Portable mobile power station​:

1. The product adopts the aluminum alloy box scheme, with high strength and beautiful appearance. It is equipped with a pull rod pulley, which is convenient for handling;

2. The product is designed to resist high and low temperatures, and the iron lithium battery with high temperature resistance is used to ensure the normal operation of the system, which can adapt to the operation at - 20 ℃ ~ + 60 ℃;

3. The product is equipped with standard interfaces, which have AC input, AC output and DC output functions respectively, to meet the use and standby requirements of AC or DC loads in different scenarios;

4. The DC output of the system has anti reverse connection function, which is safe and reliable;

5. It has the functions of over charging, over discharging, over-current, short circuit and temperature protection of battery pack, and over charging and over discharging protection of single battery.

6. The lithium ferrous phosphate battery system has the characteristics of high specific energy, small volume, light weight and long cycle life;

7. The product system adopts integrated design, plug and play, which is very convenient for field installation and use.
