1.5MWh 2000Ah Container Energy Storage System With Lithium Battery Type

Off Grid And Grid Connected Power Supply System Of Large Capacity Battery Container Energy Storage System

Product overview of container type lithium battery energy storage system:

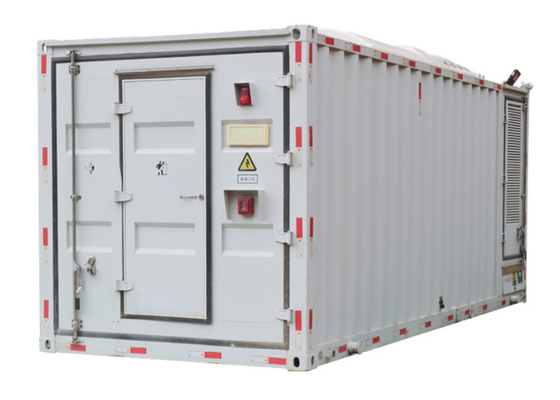

The container type lithium battery energy storage system is based on a 40 foot standard container and integrates the lithium iron phosphate battery system, PCS, BMS, EMS, air conditioning system, fire protection system, power distribution system, etc. into a special box to achieve a highly integrated, large capacity, movable energy storage device. It has the characteristics of heat insulation, constant temperature, fire retardant, wind and sand prevention, and can meet the needs of use in complex environments.

roduct parameters of container energy storage system:

Product model: LC-CNXT-2000

Rated capacity: 2000Ah

Rated voltage: 532.2V

Configuration: 1.3MWh

Charging current: 720A

Rated discharge current: 1300A

Battery type: LiFeP04

Product cell: lithium ion cell

Container size: 40 foot container

Cycle life: ≥ 5000 cycles

Service life: 210 years

Working voltage: 604.8V-788.4V

Discharge temperature: - 10-45 ° C

Charging temperature: 0~45

Cooling mode: air conditioning device

Communication port: CAN/RS485

Advantages of parallel and off grid energy storage system:

1. In the environment of power limitation, the intelligent microgrid energy storage system is combined with the photovoltaic power generation system;

2. Build local power grid support with energy storage system, and take photovoltaic power generation system as the energy source;

3. Form a complete closed loop power generation and transmission network to provide users with sustainable and stable clean energy;

4. To achieve the independent power generation system beyond the control of municipal electricity without limiting power supply or power failure;
