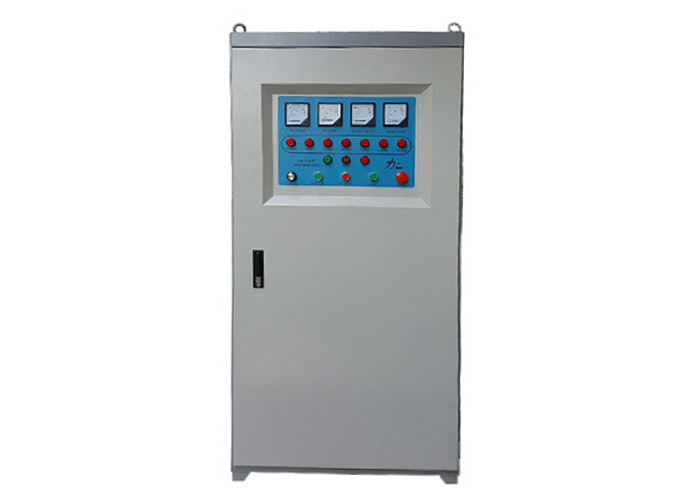

Medium Frequency Furnace Small Volume, Light Weight, Simple Installation And Convenient Operation
Introduction to medium frequency furnace:
The medium frequency furnace is composed of frequency converter, furnace body and furnace front control. Thyristor medium frequency power supply is to convert three-phase power frequency alternating current into direct current through rectifier circuit, and then output it into single-phase medium frequency alternating current through inverter circuit to supply the medium frequency coreless induction furnace, and then use electromagnetic induction principle to place the workpiece in alternating magnetic field to generate eddy current and heat, so as to meet the heating requirements of smelting, quenching and diathermy.
Technical parameters of intermediate frequency furnace
Model: LC-ZP-250
Power supply: three-phase four wire 380V 50-60Hz
Input power: 250KW
If range: 2.2khz
Load rate: 100%
Input power: 250A
Boundary dimension:700 * 900 * 150mm
Features of intermediate frequency furnace:
1. It can be controlled manually or automatically by using the automatic control panel. According to customer requirements, infrared controller can be additionally configured to make heating more intelligent.
2. The machine uses the principle of electromagnetic induction, which can penetrate non-metallic materials and instantly induce heat to any metal in a non-contact manner;
3. IGBT inverter power device is adopted, which is efficient and energy-saving and easy to control heating. The heating current value and the heating voltage value can be set, and the current, voltage, power and frequency are all displayed. The operation is intuitive, simple and convenient.
4. The traditional intermediate frequency parallel resonance structure is adopted, with a large frequency range, from 1kHz to 20kHz. It can be matched according to the size of the specific heating workpiece or the depth of heat penetration, and has a wide range of adaptability. Simple load matching, high equipment efficiency and high utilization.
5. The machine has multiple self-protection functions: overvoltage, overcurrent, water shortage, overheating, high frequency, low frequency, phase loss protection, etc. in case of any manual error during operation, the machine will automatically alarm immediately to protect its own life.
