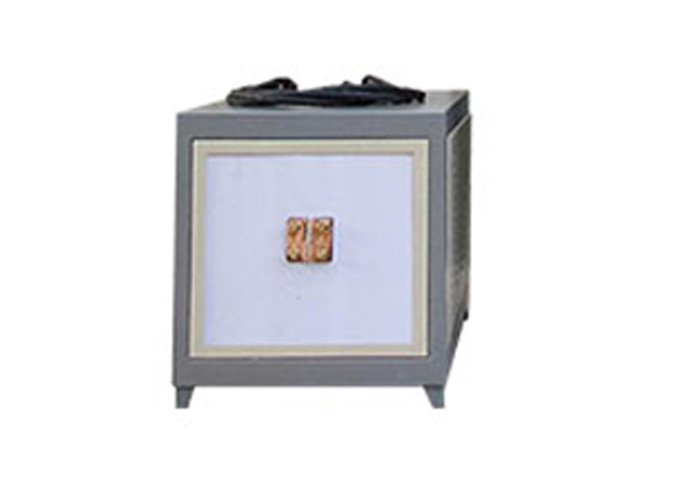

Medium Frequency Furnace Single Machine Power Up To 1000kW Medium Frequency Induction Furnace

Overview of intermediate frequency furnace:

The medium frequency furnace, also known as the medium frequency induction furnace, has a working frequency of 50 ~ 2000 Hz and is widely used for smelting non-ferrous metals and ferrous metals. Compared with other casting equipment, the medium frequency induction furnace has the advantages of high thermal efficiency, short melting time, less burning loss of alloy elements, wide melting materials, less environmental pollution, and accurate control of the temperature and composition of molten metal.

Technical parameters of intermediate frequency furnace

Model: LC-ZP-350

Power supply: three-phase four wire 380V 50-60Hz

Input power: 350KW

If range: 2.5khz

Load rate: 100%

Input power: 350A

Boundary dimension:700 * 1000 * 150mm

Performance characteristics of intermediate frequency furnace:

1. The overall efficiency is high, and the overall efficiency can reach more than 85%

2. Due to the use of energy - saving super - good devices, the whole machine has a long life

3. Realize large capacity, single machine power can reach more than 200kW

4. The output power is easy to adjust, the reaction speed is fast, the control is accurate, and the heating conditions can be arbitrarily selected

5. Low failure rate, low working voltage (380V), high safety factor, convenient use, inspection and maintenance

6. With high reliability and unique circuit design, the adopted power module units constitute the system. Even if individual power module units are damaged, the equipment will not be interrupted, and the reliable operation of the equipment will be substantially improved

7. Simple structure, simple spare parts, small floor area and light weight

8. Energy saving: compared with the high frequency induction heating equipment with the same power level, it saves more than 50% electricity and 70% water
