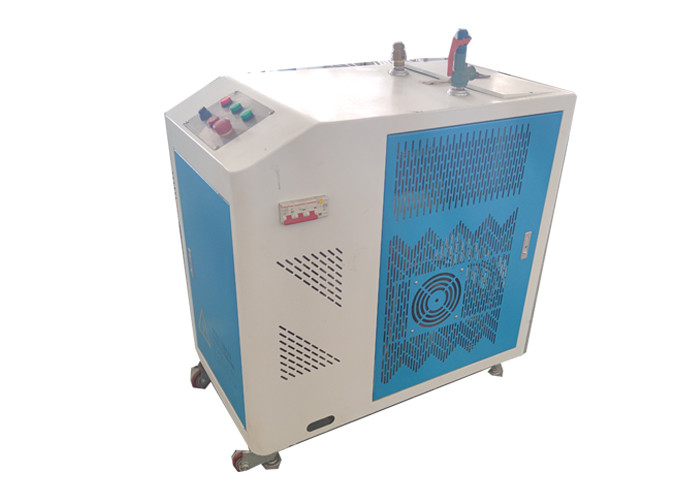

Electric Steam Boiler Full Automatic Intelligent Control Technology Multi-Functional Steam Boiler
Application of electric steam boiler:
The electric steam boiler can be used for the steam required by the processing process of industrial products such as textile, printing and dyeing, paper making, food, rubber, plastics, chemical industry, medicine, steel, metallurgy, etc., and can be used for heating, bathing, air conditioning and domestic hot water in enterprises, organs, hotels, schools, catering, service industries, etc.
Product parameters of electric steam boiler:
Product model: lc-zq-15kw
Power: 15kw
Rated steam capacity: 65kg / h
Rated working pressure: 0.2MPa
Saturated steam volume: 120 ℃
Rated voltage: 380V
Overall dimension: 820 * 51 * 1100
Features of electric steam boiler:
1. Full automatic intelligent control technology, no need for special personnel on duty. The working mode is flexible and can be set to manual or automatic mode.
2. The automatic operation period of the boiler can be set according to the needs, and multiple different working periods can be set in a day, so that the boiler can automatically start each heating group in time, and the heating group can be switched on and off cyclically, so that the service time and frequency of each contactor are the same, and the service life of the equipment can be improved.
3. The controller can automatically control, calculate and track the pressure, automatically start and stop the feed pump and electric heating pipe when the load changes, or manually control.
4. It has a complete range of protection functions, such as leakage protection, water shortage protection, grounding protection, steam overpressure protection, overcurrent protection, power supply protection, etc. the boiler is automatically protected, and the home is safe.
5. The boiler body is made of boiler pressure vessel steel plate, and the longitudinal and circumferential welds of the boiler body are automatically welded and subject to X-ray flaw detection. The small boiler body and electromechanical integration are convenient for installation and matching; The large-scale boiler body and electric control are designed separately to prevent the electric control part from being affected by the high temperature of the boiler body and ensure the stable operation of the electric control devices.
6. Low surface heat load electric heating elements conforming to JB / 2379-93 and technical conditions for metal tubular electric heating elements shall be used. The high-quality electric heating wire is covered with thickened stainless steel tube, and the tube is filled with high-purity magnesium oxide powder. The electric heating tube has a long service life. Each group of electric heating elements adopts flange connection, which has the characteristics of simple structure, high mechanical strength, safety and reliability, and easy replacement.
7. The compact structure, scientific and reasonable design and advanced manufacturing process make the boiler occupy small space, convenient for transportation and save use site.
8. No noise, no pollution, high thermal efficiency. The boiler body is insulated with high-quality and efficient thermal insulation materials, with small heat dissipation loss and energy saving.
9. The outer package of the boiler is designed with famous and high-quality color plates, which has a beautiful appearance and is not easy to rust.
