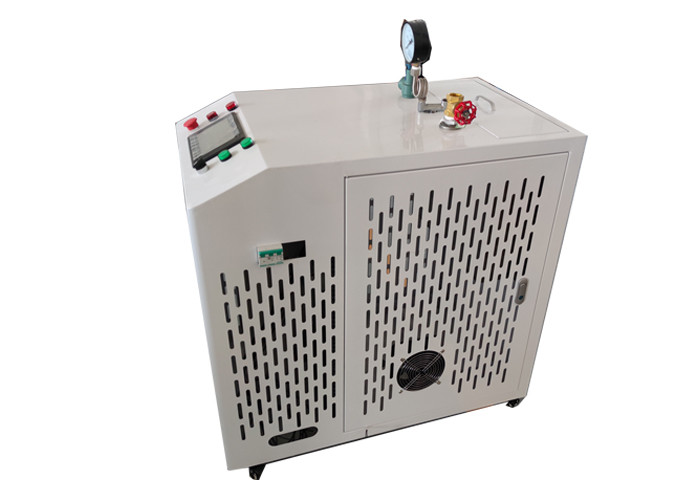

Electric Steam Boiler Inspection Free, Energy-Saving And Environment-Friendly Small Steam Generator
Working principle of electric steam boiler:
Its basic working principle is: through a set of automatic control device, ensure that the liquid controller or high, medium and low electrode probe rods feedback control the opening and closing of the water pump, the length of water supply and the heating time of the furnace liner during operation; The maximum steam pressure set by the pressure relay decreases with the continuous output of steam. When it is at low water level (Mechanical) or medium water level (Electronic), the water pump automatically replenishes water. When it is at high water level, the water pump stops replenishing water; At the same time, the electric heating pipe in the furnace bladder continues to heat, and steam is continuously generated. The pointer type pressure gauge on the panel or the upper part of the top immediately displays the steam pressure value, and the whole process can be automatically displayed through the indicator light.
Product parameters of electric steam boiler:
Product model: lc-zq-40kw
Power: 40kw
Rated steam capacity: 90kg / h
Rated working pressure: 0.2MPa
Saturated steam volume: 150 ℃
Rated voltage: 380V
Overall dimension: 820 * 75 * 1100
Application range of electric steam boiler:
It is widely used in the washing and ironing industry: dry cleaners, dryers, washing machines, dehydrators, ironing machines, irons and other equipment; Packaging machinery industry: labeling machine and labeling machine are used together; Biochemical industry: supporting use of fermentation tank, reactor, sandwich pot, mixer, emulsifying machine and other equipment; Food machinery industry: supporting use of tofu machine, steamer, sterilization tank, packaging machine, coating equipment, sealing machine and other equipment; Other applicable industries: (oil field, automobile) steam cleaning industry, (hotels, dormitories, schools, mixing stations) hot water supply, (bridges, railways) concrete maintenance, (leisure clubs) sauna and bath, heat exchange equipment, etc.
