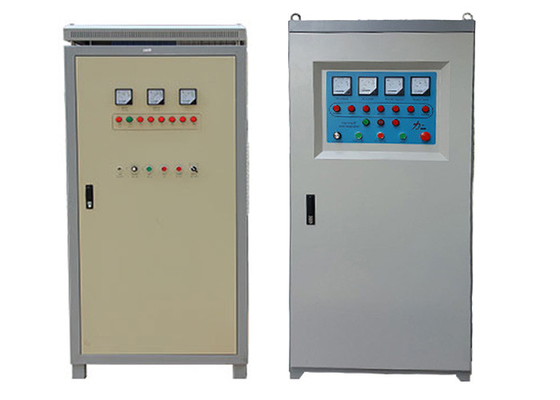

3.5khz 700KW Induction Heat Treatment Equipment Machine Small Size
discussible
MOQ
discussible
Price
3.5khz 700KW Induction Heat Treatment Equipment Machine Small Size
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, China
Brand Name: lincheng
Model Number: LC-ZP-700
High Light:

700KW Induction Heat Treatment Equipment

,

3.5khz Induction Heat Treatment Equipment

,

induction heat treatment machine Small

Payment & Shipping Terms
Packaging Details: Wooden case packaging
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Model: LC-ZP-700
Power: 700KW
Load Rate: 100%
If Range:: 3.5khz
Input Power: 700A
Boundary Dimension: 800 * 1100 * 1600mm
Product Description

Medium Frequency Furnace Small Size, Light Weight, High Efficiency And High Production Efficiency



Working principle of intermediate frequency furnace:

The medium frequency furnace is mainly composed of a power supply, an induction ring and a crucible made of refractory materials in the induction ring. The crucible is filled with metal charge, which is equivalent to the auxiliary winding of the transformer. When the induction coil is connected to the AC power supply, an alternating magnetic field is generated in the induction coil. The magnetic field lines cut the metal charge in the crucible, and the induction electromotive force is generated in the charge. Since the charge itself forms a closed circuit, the auxiliary winding is characterized by only one turn and is closed. Therefore, induction current is generated in the charge at the same time. When the induction current passes through the charge, the charge will be heated to make it melt.



Technical parameters of intermediate frequency furnace

Model: LC-ZP-800

Power supply: three-phase four wire 380V 50-60Hz

Input power: 800KW

If range: 3.4khz

Load rate: 100%

Input power: 800A

Boundary dimension:800 * 1100 * 1600mm



Safe operation of intermediate frequency furnace:

1. Precautions before starting the furnace

Before starting the medium frequency electric furnace, the electrical equipment, water cooling system, inductor copper pipe, etc. must be inspected. Only when these equipment are in good condition can the furnace be started to ensure the safety of heat treatment. Otherwise, it is prohibited to start the furnace; Determine the personnel specially responsible for power transmission and furnace opening, and the responsible personnel shall not leave the post without authorization. During the work, the external conditions of the inductor and crucible must be monitored to prevent anyone from touching the inductor and cable after power transmission, affecting the normal operation of the medium frequency electric furnace or causing safety accidents.

2. Precautions after furnace opening

After the medium frequency electric furnace is opened, the charging shall be checked to avoid mixing inflammable and explosive substances. In order to prevent capping, it is strictly prohibited to directly add cold and wet materials into the molten steel, and do not add large block materials after the molten liquid is filled to the upper part; To avoid explosion accidents, it is necessary to ensure that the pouring site and the pit in front of the furnace are free of water and obstacles; During pouring, two persons are required to cooperate with each other, and the remaining molten steel can only be poured at the designated place, and can not be poured everywhere.

3. Precautions during maintenance

During the maintenance of the medium frequency electric furnace, the medium frequency generator room shall be kept clean, and inflammable and explosive articles are strictly prohibited. The furnace with excessive melting loss shall be repaired in time. During the furnace repair, iron scraps and iron oxide shall be avoided to ensure the compactness of the crucible.
