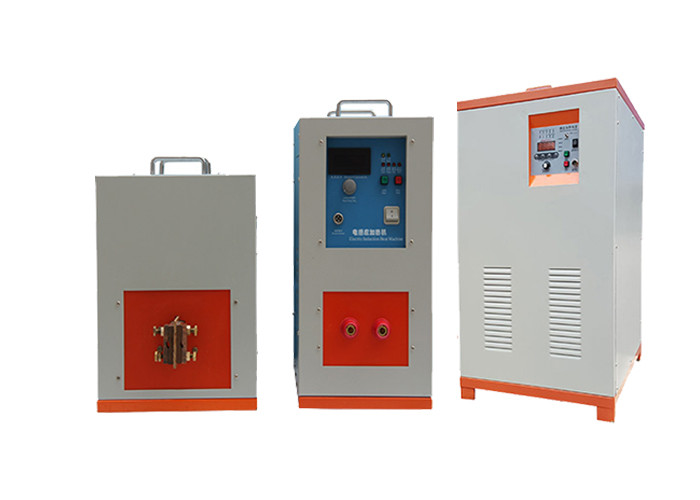

Medium Frequency Furnace Medium Frequency Furnace For Small Metal Forging
Overview of intermediate frequency furnace:
The medium frequency furnace generates the medium frequency power supply through the rectification and inversion of the thyristor and sends it to the coil of the furnace body. The medium frequency electromagnetic field is generated in the middle of the furnace body (coil), so that the metal in the furnace body generates eddy current. The eddy current generates a large amount of heat energy for the metal to melt.
Technical parameters of intermediate frequency furnace
Model: LC-ZP-900
Power supply: three-phase four wire 380V 50-60Hz
Input power: 900KW
If range: 3.9khz
Load rate: 900%
Input power: 900A
Boundary dimension:840 * 1100 * 1600mm
Features of intermediate frequency furnace:
The medium frequency furnace heating device has the advantages of small volume, light weight, high efficiency, excellent thermal processing quality and favorable environment. It is rapidly eliminating coal-fired furnace, gas furnace, oil fired furnace and ordinary resistance furnace. It is a new generation of metal heating equipment.
The medium frequency furnace is the main equipment of the casting, forging and heat treatment workshop. Its stability, reliability and safety are the guarantee for the normal and stable operation of the casting, forging and heat treatment production line of the flow line. The medium frequency furnace has a good development prospect in the field of thermal processing, such as the main production of heating furnace before forging, diathermal furnace and induction heating for: diathermal, rolling, forging, bending, heat treatment (quenching), welding and other processes.
1. Fast smelting speed, good power saving effect, less burning loss and low energy consumption.
2. Self stirring function, melting temperature and uniform metal composition.
3. The working environment of electric heating is good.
4. Good startup performance, 100% startup can be achieved for both empty and full furnaces
