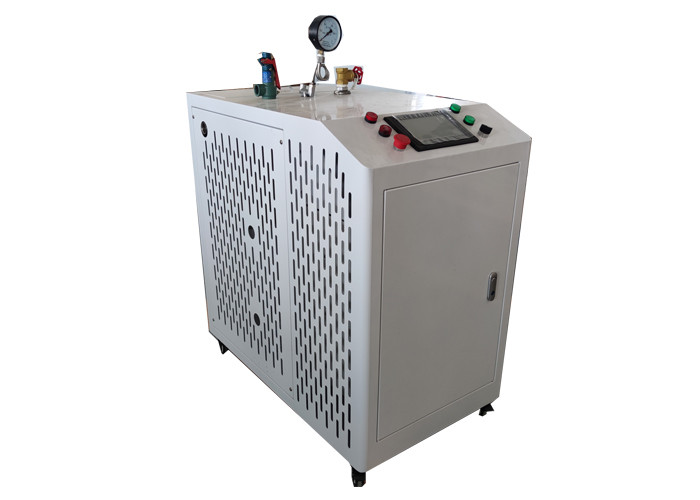

Normal Pressure Electric Steam Boiler Has High Efficiency And Convenient Maintenance
Overview of electric steam boiler products:
Electric heating boiler is mainly composed of boiler body, electric control box and control system. It is characterized by environmental protection, cleanness, pollution-free, noise-free and full-automatic. With the reduction of limited energy and a large price increase, electric heating boilers, as new boiler equipment, are more and more recognized by everyone. The electric heating tube is the core component of the electric heating boiler, which directly determines the service life of the boiler. Try to choose non-metallic electric heating tube (such as ceramic electric heating tube) because it is load-resistant, has a long service life, and is a water and electricity separation structure. The boiler will never leak electricity.
Product parameters of electric steam boiler:
Product model: lc-zq-55kw
Power: 55kw
Rated steam capacity: 105kg / h
Rated working pressure: 0.2MPa
Saturated steam volume: 165 ℃
Rated voltage: 380V
Overall dimension: 820 * 90 * 1100
Overview of electric steam boiler products:
1. Full automatic intelligent control technology, no need for special personnel on duty. The working mode is flexible and can be set to manual or automatic mode.
2. The automatic operation period of the boiler can be set according to needs, and multiple different working periods can be set in a day, so that the boiler can be divided automatically
Start each heating group, and the heating group is switched on and off cyclically, so that the service time and frequency of each contactor are the same, and the service life of the equipment is improved.
3. The controller can automatically control, calculate and command the pressure, automatically start and stop the feed pump and electric heating pipe when the load changes, or manually control.
4. It has a complete range of protection functions, such as leakage protection, water shortage protection, grounding protection, steam overpressure protection, overcurrent protection, power supply protection, etc. the boiler is automatically protected, and the home is safe.
