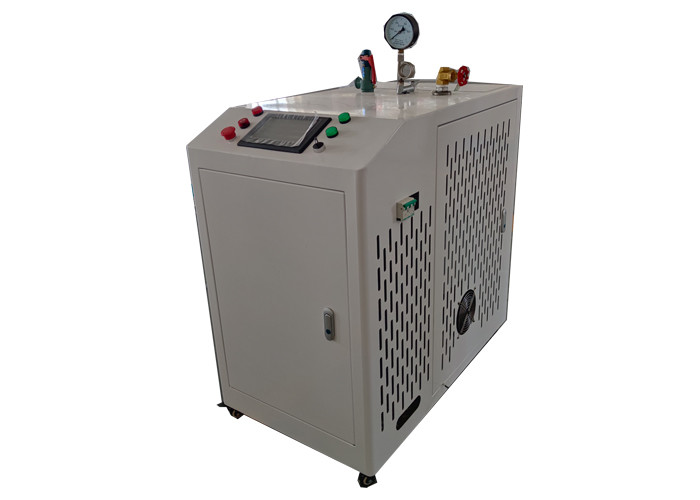

Small Electric Steam Boiler, Commercial Electric Heating Full-Automatic Steam Generator, Fast Heat Transfer Speed
Working principle of electric steam boiler:
The electric heating boiler uses a metal tubular electric heater to heat the feed water and directly convert the electric energy into thermal energy (generate hot water or steam). There is no need to convert chemical energy into thermal energy by combustion, and there is no need to supply air and fuel for combustion, and no harmful gas and ash will be emitted, which fully meets the requirements of environmental protection.
Product parameters of electric steam boiler:
Product model: lc-zq-55kw
Power: 55kw
Rated steam capacity: 105kg / h
Rated working pressure: 0.2MPa
Saturated steam volume: 165 ℃
Rated voltage: 380V
Overall dimension: 820 * 90 * 1100
Overview of electric steam boiler products:
1. Full automatic intelligent control technology, no need for special personnel on duty. The working mode is flexible and can be set to manual or automatic mode.
2. The automatic operation period of the boiler can be set according to needs, and multiple different working periods can be set in a day, so that the boiler can be divided automatically
Start each heating group, and the heating group is switched on and off cyclically, so that the service time and frequency of each contactor are the same, and the service life of the equipment is improved.
3. The controller can automatically control, calculate and command the pressure, automatically start and stop the feed pump and electric heating pipe when the load changes, or manually control.
4. It has a complete range of protection functions, such as leakage protection, water shortage protection, grounding protection, steam overpressure protection, overcurrent protection, power supply protection, etc. the boiler is automatically protected, and the home is safe.
