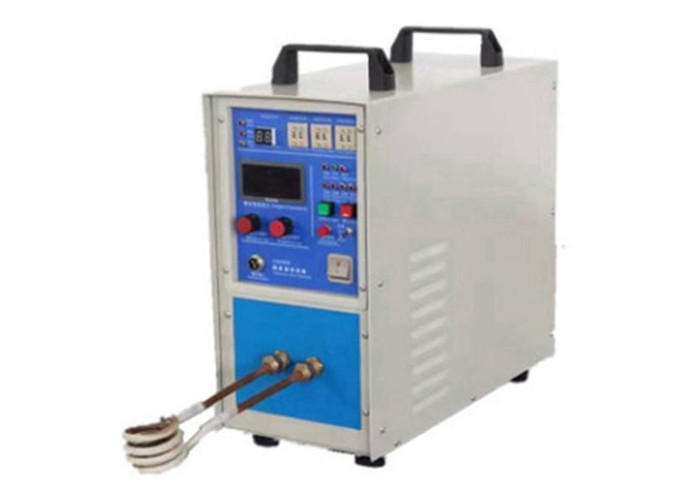

High Frequency Induction Heating Equipment
Overview of high frequency induction heating equipment:
The equipment is applied to metal forging, induction brazing, induction quenching, induction annealing, quenching and tempering, heating and hot assembly and disassembly, welding and surfacing preheating (heat treatment) and other heating fields
Technical parameters of high frequency induction heating equipment:
Model: LC-GPGY-65KW
Cooling water pressure: 0.1-0.3mpa
Input power: 65kW
Cooling water flow (main engine): 15L / min (0.1MPa)
Input voltage: 346v
Cooling water flow (transformer): 18L / min (0.1MPa)
Maximum input current: 65A
Host volume: 460×360×630mm3
Oscillation frequency: 18khz
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
Advantages of high frequency induction heating equipment:
1. Heating block: the fastest heating speed is less than 1 second, and the heating speed can be adjusted and controlled.
2. Wide application: it can heat various metal workpieces (induction rings are made according to different shapes of workpieces)
3. Low power consumption: the thermal efficiency is more than 98%, so it is more energy-saving than other heating methods.
4. Good effect: the working surface is heated evenly and quickly, reducing the deformation of the working surface oxide layer and the workpiece.
5. High effect: automatic setting function, the operation can be completed by one person, reducing the process and improving the power.
