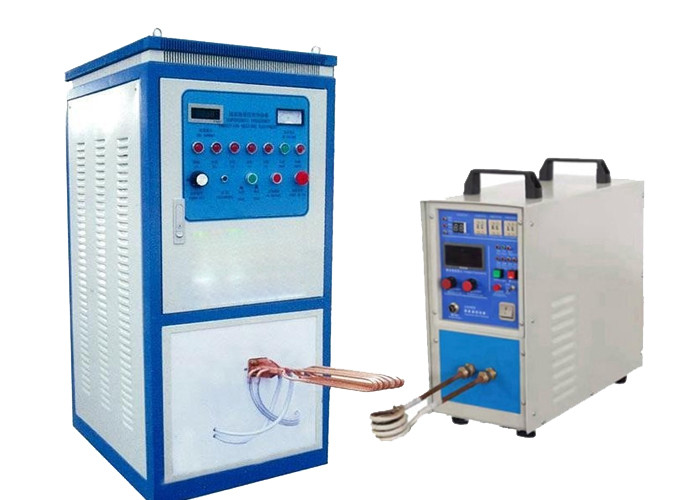

High Frequency Induction Heating Equipment High Frequency Induction Diathermy Equipment

Purpose of high frequency induction heating equipment:

The main uses are: metal heat treatment, metal quenching, metal annealing, metal tempering, metal diathermy, metal brazing, silver welding, brazing, metal heat mold, metal melting, metal embedded plastic, etc.

Technical parameters of high frequency induction heating equipment:

Model: LC-GPGY-80KW

Cooling water pressure: 0.1-0.3mpa

Input power: 80kW

Cooling water flow (main engine): 15L / min (0.1MPa)

Input voltage: 349v

Cooling water flow (transformer): 18L / min (0.1MPa)

Maximum input current: 80A

Host volume: 468mm×368mm×638mm

Oscillation frequency: 20khz

Water temperature protection point: 50 ℃

Host weight: 40 ± 5% kg

Efficiency: 90%

Advantages of high frequency induction heating equipment:

1. High heating temperature, fast speed, short heating time, and uniform heating of metal materials. The surface of the object to be heated; Less oxidation, less workpiece deformation, and non-contact heating;

2. Output power adjustment is flexible, convenient and accurate;

3. The temperature of the heated workpiece is easy to control, so the product quality is stable;

4. Changing the shape of the induction heating ring can heat complex workpieces and can also realize local heating;

5. Due to the use of transistor devices with low self loss and inverter control technology, the overall efficiency can reach more than 95%; And the effect of energy saving and water saving is remarkable;

6. Small size, light weight, good working environment, no noise and dust;

7. Various protection actions are sensitive, the service life of main components is long, the collected fault rate is low, the performance is reliable, and it can work continuously;

8. The machine can work when water and electricity are connected. It is easy to operate and maintain;
