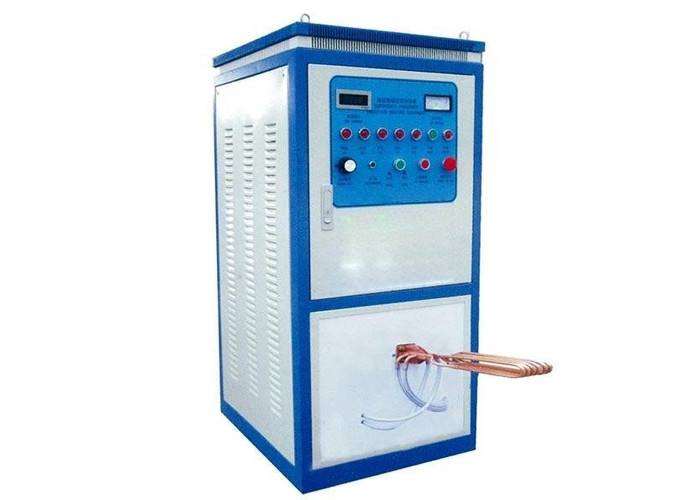

High Frequency Induction Heating Equipment Annealing And Welding Handheld Induction Heating Equipment
Working principle of high frequency induction heating equipment:
The principle of high-frequency induction heating machine: it is a heating induction coil that is wound into a ring state or a required shape by using the large current flow direction of high-frequency induction. The high-frequency induction is usually made of red copper hollow tube.
Technical parameters of high frequency induction heating equipment:
Model: LC-GPGY-70KW
Cooling water pressure: 0.1-0.3mpa
Input power: 70kW
Cooling water flow (main engine): 15L / min (0.1MPa)
Input voltage: 347v
Cooling water flow (transformer): 18L / min (0.1MPa)
Maximum input current: 70A
Host volume: 466mm×366mm×636mm
Oscillation frequency: 19khz
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
Advantages of high frequency induction heating equipment:
1. Heating block: the fastest heating speed is less than 1 second, and the heating speed can be adjusted and controlled.
2. Wide application: it can heat various metal workpieces (induction rings are made according to different shapes of workpieces)
3. Low power consumption: the thermal efficiency is more than 98%, so it is more energy-saving than other heating methods.
4. Good effect: the working surface is heated evenly and quickly, reducing the deformation of the working surface oxide layer and the workpiece.
5. High effect: automatic setting function, the operation can be completed by one person, reducing the process and improving the power.
