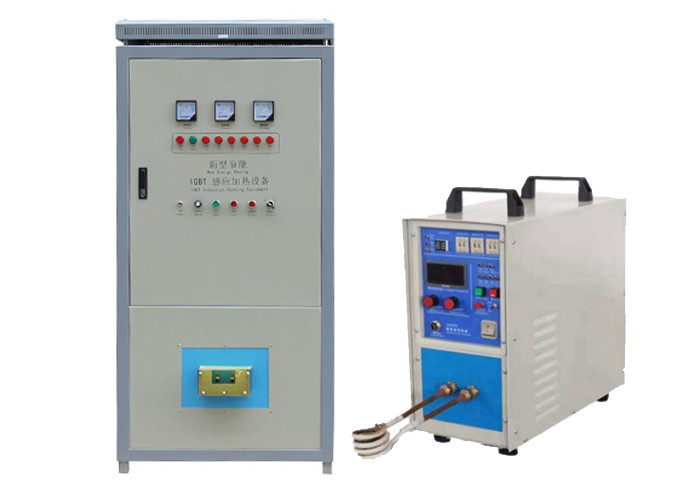

High Frequency Induction Heating Equipment Heating, Quenching, Annealing And Welding Heat Treatment Equipment

Features of high frequency induction heating equipment:

Under the same conditions, the high-frequency induction heating machine can save 50% power than the traditional high-frequency electronic tube heating equipment, without high-frequency radiation and high-frequency interference. Reduced power load and power capacity, with 100% full load design, high-frequency induction heating machine can work continuously for 24 hours

Technical parameters of high frequency induction heating equipment:

Model: LC-GPGY-75KW

Cooling water pressure: 0.1-0.3mpa

Input power: 75kW

Cooling water flow (main engine): 15L / min (0.1MPa)

Input voltage: 348v

Cooling water flow (transformer): 18L / min (0.1MPa)

Maximum input current: 75A

Host volume: 467mm×367mm×637mm

Oscillation frequency: 20khz

Water temperature protection point: 50 ℃

Host weight: 40 ± 5% kg

Efficiency: 90%

Advantages of high frequency induction heating equipment:

1. High heating temperature, fast speed, short heating time, and uniform heating of metal materials. The surface of the object to be heated; Less oxidation, less workpiece deformation, and non-contact heating;

2. Output power adjustment is flexible, convenient and accurate;

3. The temperature of the heated workpiece is easy to control, so the product quality is stable;

4. Changing the shape of the induction heating ring can heat complex workpieces and can also realize local heating;

5. Due to the use of transistor devices with low self loss and inverter control technology, the overall efficiency can reach more than 95%; And the effect of energy saving and water saving is remarkable;

6. Small size, light weight, good working environment, no noise and dust;

7. Various protection actions are sensitive, the service life of main components is long, the collected fault rate is low, the performance is reliable, and it can work continuously;

8. The machine can work when water and electricity are connected. It is easy to operate and maintain;
