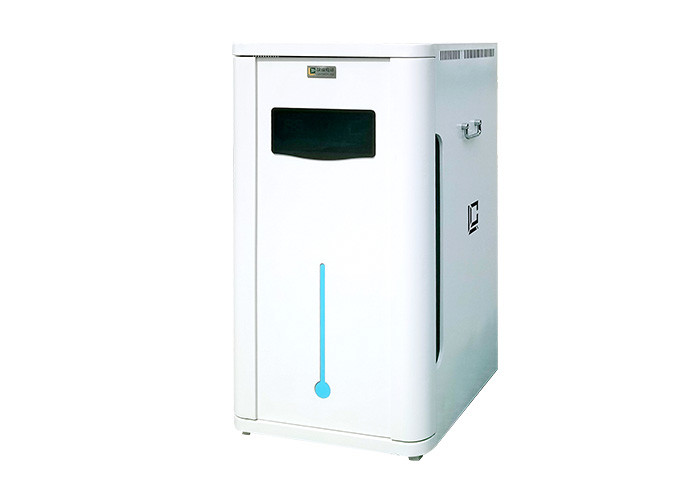

Electric Heater Boiler 30Kw Heating Area: 300-400 ㎡ Feed Water Pump Industrial Product
What Is An Electric Heater Boiler:
Electric heater boiler is a new industrial product which combines modern electronic technology with the functions of traditional boiler. The function of the traditional boiler is realized by electronic and electromagnetic means. The electric heater boiler adopts modern computer control technology to make the intelligent, automatic and humanized performance of the electric heater boiler a reality. It has the advantages of high stability, rich functions, simple operation, convenient use, flexible control and beautiful appearance.
Electric Heater Boiler Technical Parameter:
| Serial number | Product model | Company | LC-L-20kw | LC-L-30kw |
| 1 | Rated power | KW | 20 | 30 |
| 2 | Rated current | A | 30.4 | 45.6 |
| 3 | Heating area | ㎡ | 200-300 | 300-400 |
| 4 | input voltage | 50HZ | 380V | 380V |
| 5 | Minimum flow of water pump configuration | L/min | 32 | 36 |
| 6 | Hot water yield 50 ℃ | L/min | 5.62 | 13.8 |
| 7 | Design thermal efficiency | ℃ | 98% | 98% |
| 8 | Maximum water temperature | ℃ | 85 | 85 |
| 9 | Low temperature protection temperature | ℃ | 5 | 5 |
| 10 | Overall dimension (length * width * height) | mm | 490*490*900 | 490*490*900 |
| 11 | Water inlet and outlet interface | DN | 32 | 40 |
Characteristics Of Eectric Heater Boiler:
1,The working mode of electric heater boiler is flexible and can be set to manual or automatic mode.
2,The electric heater boiler is controlled by fully automatic intelligent control technology, without personnel on duty.
3,The electric heater boiler occupies a small area and saves space.
4,The electric heater boiler operates in an environment-friendly manner, without noise and pollution, with high thermal efficiency (thermal efficiency greater than 95%) and small heat dissipation loss.
5,The electric heater boiler can ensure that the feed water pump and circulating pump can be started or stopped automatically when the load changes, and can also be controlled manually.
Application Field Of Electric Heater Boiler:
The technology is widely used in homes, schools, hospitals, restaurants, factories and mines, bathing centers, swimming pools and other heating and hot water places, and extends to the fields of biopharmaceutical, food cooking, hospital washing, hospital disinfection and sterilization, industrial mining, wine making enterprises, ironing and washing, traditional Chinese Medicine, tea stir frying and so on.
Working Principle Of Electric Boiler:
The core of the electromagnetic boiler technology is the heat generation equipment that uses the electromagnetic principle and uses the heat generated by the eddy current generated by the wire of magnetic force cutting metal as the heat source and passes through the heat emission system (such as the water heating system) to achieve the purpose of heating. The technical principle of electromagnetic boiler is to convert 50Hz medium frequency power supply into 20000hz high frequency power supply, and there is no noise after the equipment is started. When used, it does not release any harmful gas, no fire, smokeless and tasteless, without many pollution problems of traditional heating equipment, and will not produce open fire in the heating process, so as to truly achieve the effect of environmental protection and energy saving.
