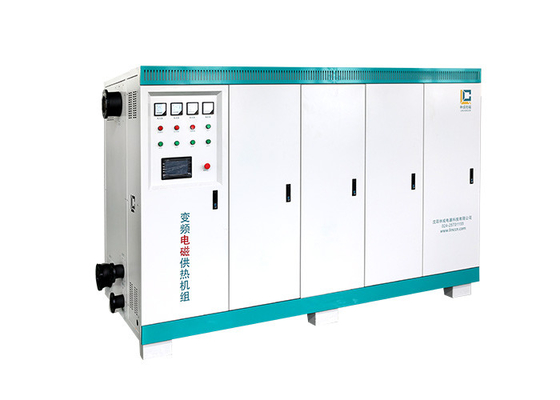

750KW 380V 50HZ Electric Heater Boiler With Water Electricity Separation Technology
discussible
MOQ
discussible
Price
750KW 380V 50HZ Electric Heater Boiler With Water Electricity Separation Technology
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, Liaoning, China
Brand Name: lincheng
Model Number: LC-L-750kw
High Light:

750KW 380V Electric Heater Boiler

,

380V Electric Heater Boiler

,

50HZ electric boiler heater

Payment & Shipping Terms
Packaging Details: Wooden case packing
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Rated Power: 750kw
Heating Area: 7500㎡-12000㎡
Rated Current: 1140A
Hot Water Production Rate 50 ℃: 351L/min
Overall Dimensions: 3500mm*1200mm*2000mm(L*W*H)
Sectional Area Of Power Line: ≥550㎡
Product Description

Electric Heater Boiler:750Kw Heating Area: 7500-10000㎡ Water And Electricity Separation Of Electric Heating Boiler



How To Repair The Electric Heater Boiler:

    1. The boiler feed water of electric heater must be strictly treated to prolong the boiler life. As an important matter to ensure operation safety, the quality of soft water treatment shall be implemented according to relevant standards.

    2. The feed water temperature shall be as close as possible to the furnace temperature and shall be higher than 20 ° C.

    3. It is very important to ensure the normal operation of water level control. Water shortage is one of the main causes of boiler accidents and damages. It is necessary to regularly check and maintain the low water level cut-off device. If one flushing is not clean, the flushing water level gauge shall not be lower than the safe water level at the bottom. It can be rinsed many times, but it must be rinsed at high water level. The steps for flushing the water level gauge have been described in detail above.

    4. In order to remove the slag and sludge at the bottom of the electric heater boiler and reduce the concentration of boiler water, regular blowdown must be carried out. At least once a day, and the pollutant emission rate shall not exceed 3%. After blowdown, regularly check whether the blowdown valve leaks due to the influence of dirt. If so, it must be eliminated and the water level maintained. Please refer to the flushing method of water level gauge.





Electric Heater Boiler Technical Parameter:

Serial number Product model Company LC-L-750kw
1 Rated power KW 750
2 Rated current A 1140
3 Heating area 7500-10000
4 input voltage 50HZ 380V
5 Minimum flow of water pump configuration L/min 850
6 Hot water yield 50 ℃ L/min 351
7 Design thermal efficiency 98%
8 Maximum water temperature 85
9 Low temperature protection temperature 5
10 Overall dimension (length * width * height) mm 3500L*1200W*2000H
11 Water inlet and outlet interface DN 100



Safety Measures For Use Of Electric HeaterBoiler:

    Safety protection must be strengthened when electric heater boilers are used. With the rapid development of electromagnetic heating furnace industry, electric heater boilers have been widely used. Electric heater boilers are used in thousands of households. We must ensure the strengthening of safety protection awareness when using them. Only in this way can we ensure the safe and normal operation of electric heater boilers and avoid various safety accidents.
