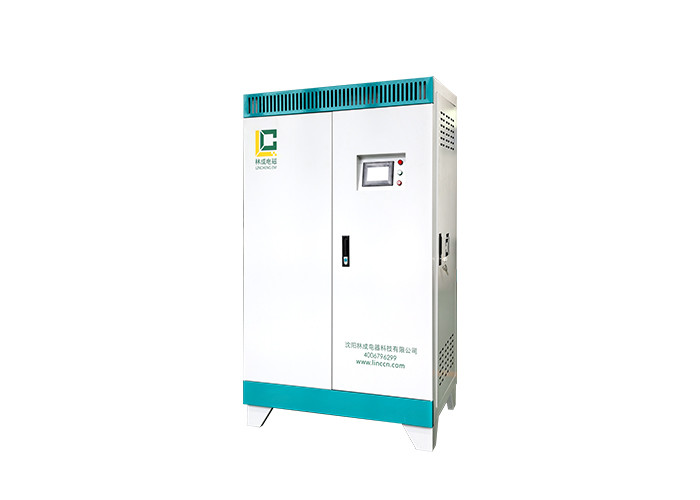

Electric Heater Boiler Technical Parameter:
NO. | Product model | Unit | LC-L-50kw | LC-L-60kw |
1 | Rated power | KW | 50 | 60 |
2 | Rated current | A | 76 | 91.2 |
3 | Heating area | ㎡ | 500-700 | 600-800 |
4 | input voltage | 50HZ | 380V | 380V |
5 | Minimum flow of water pump configuration | L/min | 32 | 36 |
6 | Hot water yield 50 ℃ | L/min | 23 | 27.6 |
7 | Design thermal efficiency | ℃ | 98% | 98% |
8 | Maximum water temperature | ℃ | 85 | 85 |
9 | Low temperature protection temperature | ℃ | 5 | 5 |
10 | Overall dimension (length * width * height) | mm | 1160L*720W*1700H | 1160L*720W*1700H |
11 | Water inlet and outlet interface | DN | 40 | 40 |
Installation size chart:
Introduction To Working Principle Of Electric Heater Boiler:
The heater that converts electric energy into thermal energy by using the electromagnetic induction principle converts the 50Hz AC voltage into DC voltage by the rectifier circuit in the controller, and then converts the DC voltage into a high-frequency AC voltage with a frequency of 22khz through the control circuit. The high-frequency AC voltage flows through the high-frequency wire wound outside the non-metallic material pipe, and the magnetic force lines generated by the high-speed changing magnetic field will generate numerous small eddy currents when cutting the metal container inside the non-metallic material pipe, so that the water can be heated rapidly and the effect of rapid heating of water can be achieved.
Why choose us ?
Safety Of Electric Heater Boiler:
1. Electromagnetic induction heating, real separation of water and electricity, circuit and waterway insulation.
2. Low voltage soft start can reduce the harm of current surge impact and avoid damage to equipment due to voltage fluctuation, thus ensuring safety.
3. The variable frequency power output part can automatically adjust the current according to the voltage fluctuation to ensure the constant power, and will not be damaged due to insufficient electrical load due to the rise of voltage and current.
Energy Saving Of Electric Heater Boiler:
High frequency electromagnetic induction heating directly acts on the water tank through electromagnetic induction, making the water tank heat itself, reducing the process of conduction through the medium, with less heat loss and high thermal efficiency, i.e. heating when adding, without heat storage container, and the instantaneous thermal efficiency can be as high as 80%.
Service Life Of Electric Heater Boiler:
Industrial grade electromagnetic, high temperature resistant wire, about 15-20 years of use
