100Kw Eelectric Household Boilers Constant Temperature Control
discussible
MOQ
discussible
Price

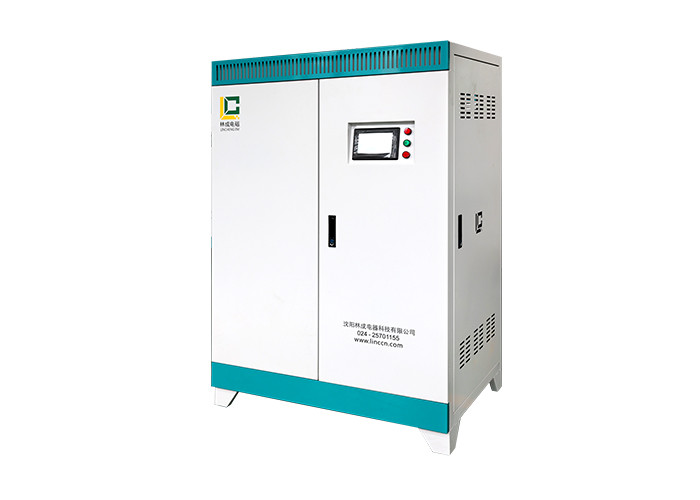

100Kw Eelectric Household Boilers Constant Temperature Control
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, Liaoning, China
Brand Name: lincheng
Model Number: LC-L-100kw
High Light:

100Kw Eelectric Household Boilers

,

electric Household Boilers Constant Temperature

Payment & Shipping Terms
Packaging Details: Wooden case packing
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Rated Power: 100kw
Heating Area: 1000㎡-1200㎡
Rated Current: 152A
Voltage Frequency: 380V/50Hz
Hot Water Production Rate 50 ℃: 46.2L/min
Upper And Lower Water Interface: 50DN
Overall Dimensions: 1160mm*720mm*1700mm
Heating Mode: Electric Heating
Product Description

Electric Heater Boiler 100Kw Heating Area: 1000-1200 ㎡ Constant temperature control household electric heating equipment



    What Is An Electric Heater Boiler:

    The electric heater boiler has unique advantages in controllability, environmental protection, safety, operation cost, durability, safety maintenance, comfort and scope of use. It can not only ensure the clean energy and reduce the environmental burden, but also meet the heating demand in winter


Electric Heater Boiler Technical Parameter:

Serial number Product model Company LC-L-100kw LC-L-120kw
1 Rated power KW 100 120
2 Rated current A 152 182.4
3 Heating area 1000-1200 12
4 input voltage 50HZ 380V 380V
5 Minimum flow of water pump configuration L/min 92 112
6 Hot water yield 50 ℃ L/min 46.2 56.2
7 Design thermal efficiency 98% 98%
8 Maximum water temperature 85 85
9 Low temperature protection temperature 5 5
10 Overall dimension (length * width * height) mm 1160L*720W*1700H 1160L*720W*1700H
11 Water inlet and outlet interface DN 50 50



Electric Heaters And Boilers Have Those Advantages:

    1. The electric heater boiler uses electromagnetic induction heating, which can achieve the separation of water and electricity in a real sense, and the insulation of the circuit and the waterway, fully avoiding the potential leakage of electrical equipment and reducing the probability of safety problems.

    2. Low voltage soft start can reduce the harm caused by current surge impact, and also avoid the damage caused by voltage fluctuation to the equipment, and further ensure the safety.

    3. The frequency conversion power output mode can automatically regulate the current, and will not be damaged by the current rise caused by the voltage rise.

    4. It has antifreeze function. When the system water temperature is lower than 5 ℃, the equipment will automatically start. When the water temperature rises to 10 ℃, the equipment will automatically stop heating.

    5. The function of fixed time and constant temperature can be adjusted at random from 0 ° C to 85 ° C, and can be started and operated at a fixed time. The power can also be adjusted according to personal needs, and the waste can be reduced at the same time of heating.

    6. Intelligent networking enables remote control. With Wi Fi intelligent connection network, remote control can be realized through mobile phone app, which is convenient to use.
