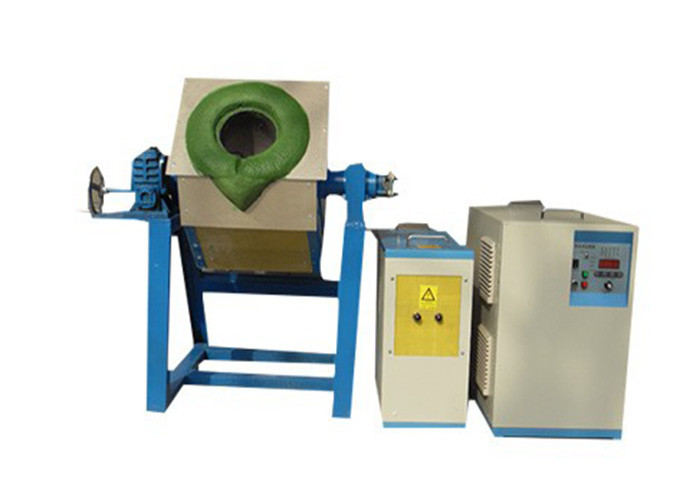

WZP-70 Small Induction Melting Furnace Medium Frequency Induction Heating
Advantages Of Small Metal Small Induction Smelting Furnace:
1. The machine is small in size and light in weight. Easy to move. One can hold two hands;
2. 220V single-phase electric switching power supply, environmental protection, energy saving and environmental protection. It has built-in electromagnetic induction mixing function, which makes it easier to obtain relatively highly symmetrical metal liquid;
3. The high-voltage power supply with high IGBT power is used for electromagnetic induction heating, which makes the melting speed faster and easy to use; 4. Mini desktop integrated machine small key smelting furnace can melt 1-2kg precious metal rapidly in only 2 minutes, and can produce about 30kg key metal in one hour;
5. It has the protection functions of overcurrent, overvoltage, undervoltage, water shortage and overheating;
6. Improved monitoring and diagnosis instrument to ensure high reliability, stability and safety factor of equipment
Parameters of small induction smelting furnace:
model | 15 | 25 | 35 | 45 | 70 | 90 | 110 | 160 |
Power | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 160KW |
Input current | 18A | 36A | 57A | 80A | 110A | 140A | 160A | 240A |
DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
input voltage | 380V 50-60HZ | |||||||
Oscillation frequency | 1KHZ-20KHZ | |||||||
Connecting linemm² | 10 | 10 | 16 | 35 | 50 | 75 | 90 | 120 |
Control switch | 50A | 60A | 80A | 120A | 150A | 225A | 225A | 300A |
ground wire mm² | 2mm2 | |||||||
Cooling water pressure | ≥0.2MPa | |||||||
Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min |
Nowadays, small metal induction smelting furnaces have been widely used in the metallurgical industry, especially small metal smelting furnaces. Because of their small size and convenient use, they are warmly welcomed by small metallurgical industry companies.
