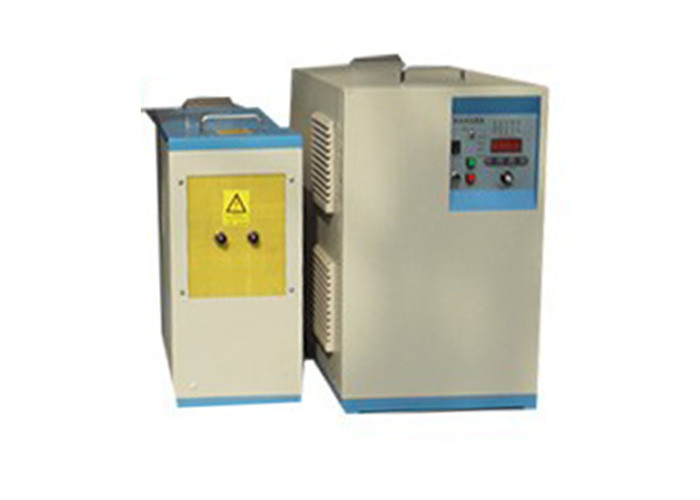

WZP-160 Small Induction Melting Furnace Nonferrous Metals Magnetic Field Induction Heating Mode
Features Of Small Induction Smelting Furnace:
Small induction melting furnace refers to the machinery and equipment that melts metal ingots and some waste metals and adds the required alloy components, and melts them into necessary aluminum alloys through slag scraping, refining and other practical operations. The main features of smelting furnace are: light equipment, faster heating speed and high efficiency; In particular, the power consumption of the same load is 60% less than that of the rectifier tube high-frequency machine; It has various protection functions such as overcurrent, overvoltage and overtemperature. It is convenient to use and install. It is suitable for various places where metal heating is required. In order to ensure the casting quality of metal aluminum alloy, the service life of smelting furnace shall be increased as much as possible.
Parameters of small induction smelting furnace:
| model | 15 | 25 | 35 | 45 | 70 | 90 | 110 | 160 |
| Power | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 160KW |
| Input current | 18A | 36A | 57A | 80A | 110A | 140A | 160A | 240A |
| DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
| input voltage | 380V 50-60HZ | |||||||
| Oscillation frequency | 1KHZ-20KHZ | |||||||
| Connecting linemm² | 10 | 10 | 16 | 35 | 50 | 75 | 90 | 120 |
| Control switch | 50A | 60A | 80A | 120A | 150A | 225A | 225A | 300A |
| ground wire mm² | 2mm2 | |||||||
| Cooling water pressure | ≥0.2MPa | |||||||
| Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min | |||||
What Are The Main Uses Of Small Induction Melting Furnace:
1. Heat treatment process: partial or overall heat treatment, quenching, tempering and diathermy of various metals;
2. Hot forming: whole forging, partial forging, hot upsetting and hot rolling;
3. Electric welding: brazing of various metal products, electric welding of various CNC blade tips, sawtooth shaped woodworking saw blades, welding of seamless steel pipes and copper pipes, and welding of the same and different metals;
4. Metal smelting: gold, silver, copper, iron, aluminum and other metals (vacuum pump) smelting, casting, forming and volatilizing surface coating;
5.Other applications of high-frequency heating machine: growth and development of single crystal of semiconductor materials, heat cooperation, bottle stopper heat sealing, whitening toothpaste skin heat sealing, powder spraying, metal embedded plastic, etc.
