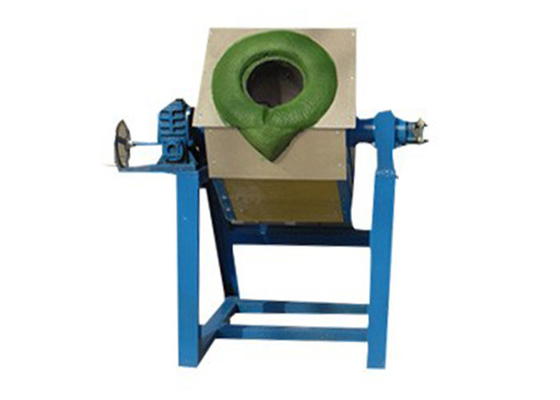

WZP-90 Small Induction Melting Furnace Simple Operation No Dust No Loss
Small induction melting furnace, fast melting speed, no open fire, low consumption, energy saving and environmental protection, small size, simple operation, no dust, no loss, harmless to the body, safe and reliable. It can be used without debugging and directly connected with electricity and water. The machine operation is very simple and can be completed in 5 minutes; It is applicable to the melting of iron, steel, copper, aluminum and zinc and the melting of various precious metals, such as gold and silver. It is used in university laboratories, research institutes, hand decoration processing, mold factories, metal processing enterprises, casting processing, small-scale smelting processing, small batch production, personal manual workshop production, school smelting experiments, scientific research institution smelting experiments, precious metal purification, gold and silver bar production and other occasions. It completely solves the problem of coke heating The disadvantages of the original smelting process such as gas heating are ideal equipment for the new generation of metal smelting.
Parameters of small induction smelting furnace:
| model | 15 | 25 | 35 | 45 | 70 | 90 | 110 | 160 |
| Power | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 160KW |
| Input current | 18A | 36A | 57A | 80A | 110A | 140A | 160A | 240A |
| DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
| input voltage | 380V 50-60HZ | |||||||
| Oscillation frequency | 1KHZ-20KHZ | |||||||
| Connecting linemm² | 10 | 10 | 16 | 35 | 50 | 75 | 90 | 120 |
| Control switch | 50A | 60A | 80A | 120A | 150A | 225A | 225A | 300A |
| ground wire mm² | 2mm2 | |||||||
| Cooling water pressure | ≥0.2MPa | |||||||
| Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min | |||||
Features Of Small Induction Smelting Furnace:
1. Heating mode: magnetic field induction heating mode is adopted, and metal purification also has very good effect.
2. Object of action: (metallic gold) silver, copper, iron, aluminum, zinc, tin, antimony, nickel, as well as various alloys (non-metallic) silicon and polysilicon, and can also heat graphite molds
3. Heating furnace body: graphite crucible, quartz sand crucible, magnesia casting crucible, ceramic crucible, cast iron crucible, etc. (different crucibles are equipped according to the melting materials of different metals).
4. Main accessories: the control circuit board independently developed by the company, as well as modules, rectifier bridges and other accessories from major well-known manufacturers
5. Load support: 100% load duration to win time and profit for the enterprise
6. Heating speed: the heating speed is fast, and the suitable melting time is 10-30 minutes for low melting point and 40-50 minutes for high melting point
7. Furnace temperature: 1200-1700 ° C, which can melt polysilicon
8. Support improvement: you can design temperature control and other modifications to support customer customization requirements to a certain extent
