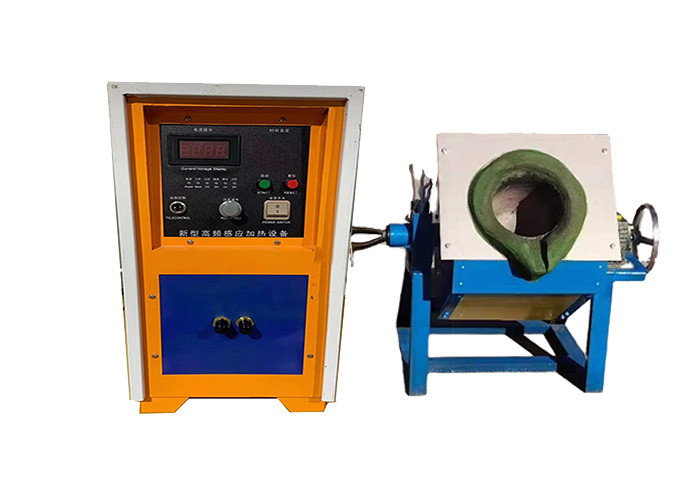

Small Induction Melting Furnace Induction Heating Equipment Frequency Conversion Heating Principle
The small induction smelting furnace usually adopts the following four configuration modes: each of the four configuration schemes has advantages and disadvantages. Generally, the specific configuration mode shall be finally selected according to the casting process requirements, on-site power conditions, production objectives, development scale and other changing conditions of the equipment demander, so as to meet the high efficiency, safety and stability of the equipment used by the user, and facilitate the flexible adjustment of the process or scale expansion.
Parameters of small induction smelting furnace:
model | 15 | 25 | 35 | 45 | 70 | 90 | 110 | 160 |
Power | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 160KW |
Input current | 18A | 36A | 57A | 80A | 110A | 140A | 160A | 240A |
DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
input voltage | 380V 50-60HZ | |||||||
Oscillation frequency | 1KHZ-20KHZ | |||||||
Connecting linemm² | 10 | 10 | 16 | 35 | 50 | 75 | 90 | 120 |
Control switch | 50A | 60A | 80A | 120A | 150A | 225A | 225A | 300A |
ground wire mm² | 2mm2 | |||||||
Cooling water pressure | ≥0.2MPa | |||||||
Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min |
Advantages of small induction smelting furnace:
(1) High melting efficiency, good power saving effect, compact structure and strong overload capacity
(2) The temperature around the furnace is low, the dust is small, and the working environment is good.
(3) The operation process is simple and the smelting operation is reliable.
(4) The metal composition is uniform.
(5) The melting temperature rises quickly, the furnace temperature is easy to control, and the production efficiency is high.
(6) The furnace has high utilization rate and is convenient to change varieties.
(7) The long arc-shaped yoke shields the magnetic leakage and reduces the external magnetic resistance, has the magnetic leakage at both ends of the shielded coil, and the cross section of the yoke is arc-shaped. The inner side of the yoke is seamlessly attached to the outer wall, which increases the effective magnetic permeability area and makes the lower ring better supported. The unique forward and reverse rotation coil greatly improves the efficiency of the system.
