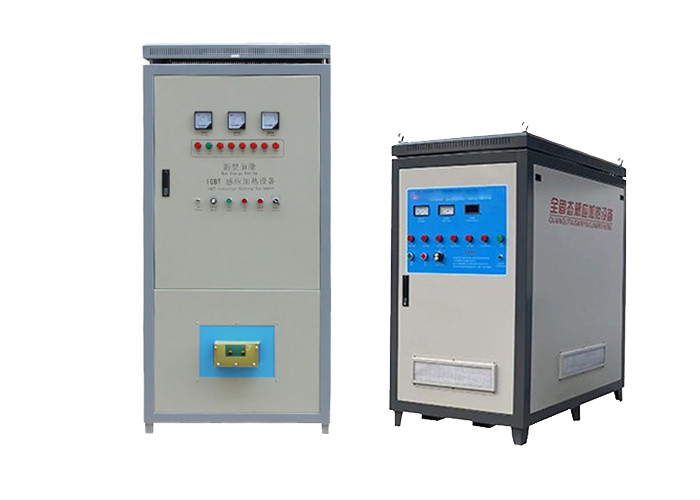

High Frequency Induction Heating Equipment Metal Quenching And Annealing Heat Treatment Equipment
Working principle of high frequency induction heating equipment:
High frequency high-frequency large current flows to heating coils (usually made of copper tubes) that are wound into rings or other shapes. Thus, a strong magnetic beam with instantaneous polarity change is generated in the coil. When the heated object such as metal is placed in the coil, the magnetic beam will penetrate the whole heated object, and a corresponding large eddy current will be generated in the direction opposite to the heating current inside the heated object. Due to the resistance in the heated object, a lot of Joule heat will be generated, and the temperature of the object itself will rise rapidly. To achieve the purpose of heating all metal materials.
Technical parameters of high frequency induction heating equipment:
Model: LC-GPGY-105KW
Maximum input current: 105A
Input power: 105kW
Oscillation frequency: 27khz
Input voltage: 355v
Host volume: 473mm×373mm×673mm
Cooling water pressure: 0.1-0.3mpa
Cooling water flow (main engine): 15L / min (0.1MPa)
Cooling water flow (transformer): 18L / min (0.1MPa)
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
Application fields of high frequency induction heating equipment:
1. Heat treatment: local or overall quenching, annealing, tempering and diathermy of various metals;
2. Hot forming: whole forging, partial forging, hot upsetting and hot rolling;
3. Welding: brazing of various metal products, welding of various cutter blades and saw blades, welding of steel pipes and copper pipes, welding of the same and different metals;
4. Metal melting: the (vacuum) melting, casting and forming and evaporation coating of gold, silver, copper, iron, aluminum and other metals;
5. Other applications of high-frequency heating machine: semiconductor single crystal growth, heat matching, bottle mouth heat sealing, toothpaste skin heat sealing, powder coating, metal implant plastic, etc.
