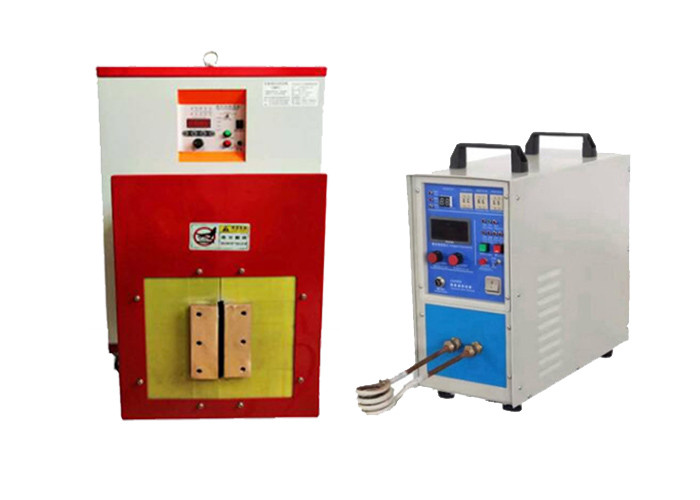

High Frequency Induction Heating Equipment Small High Frequency Heating Equipment For Metal Smelting

Overview of high frequency induction heating equipment:

The frequency of the power supply used for the high-frequency induction heating furnace is above 10000hz, up to 1MHz.

Technical parameters of high frequency induction heating equipment:

Model: LC-GPGY-115KW

Maximum input current: 115A

Input power: 115kW

Oscillation frequency: 28khz

Input voltage: 356v

Host volume: 475mm×375mm×675mm

Cooling water pressure: 0.1-0.3mpa

Cooling water flow (main engine): 15L / min (0.1MPa)

Cooling water flow (transformer): 18L / min (0.1MPa)

Water temperature protection point: 50 ℃

Host weight: 40 ± 5% kg

Efficiency: 90%

Application fields of high frequency induction heating equipment:

1. Heat treatment: local or overall quenching, annealing, tempering and diathermy of various metals;

2. Hot forming: whole forging, partial forging, hot upsetting and hot rolling;

3. Welding: brazing of various metal products, welding of various cutter blades and saw blades, welding of steel pipes and copper pipes, welding of the same and different metals;

4. Metal melting: the (vacuum) melting, casting and forming and evaporation coating of gold, silver, copper, iron, aluminum and other metals;

5. Other applications of high-frequency heating machine: semiconductor single crystal growth, heat matching, bottle mouth heat sealing, toothpaste skin heat sealing, powder coating, metal implant plastic, etc.
