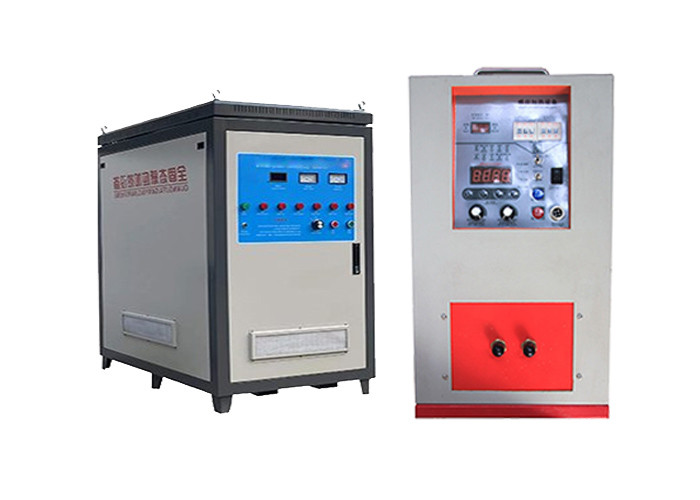

High Frequency Induction Heating Equipment Green Environmental Protection Equipment With Good Safety Performance
Overview of high frequency induction heating equipment:
The frequency of the power supply used for the high-frequency induction heating furnace is above 10000hz, up to 1MHz.
Technical parameters of high frequency induction heating equipment:
Model: LC-GPGY-120KW
Maximum input current: 120A
Input power: 120kW
Oscillation frequency: 28khz
Input voltage: 357v
Host volume: 476mm×376mm×676mm
Cooling water pressure: 0.1-0.3mpa
Cooling water flow (main engine): 15L / min (0.1MPa)
Cooling water flow (transformer): 18L / min (0.1MPa)
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
Application range of high frequency induction heating equipment:
1. Surface heat treatment of small gear, sprocket, spline shaft, camshaft and other parts
2. Local quenching of various hand tools, garden tools, hardware tools, etc
3. Welding of turning tools, planers and other machining tools and woodworking tools
4. Local quenching treatment of printing machine tools, etc
5. Hot upsetting of high strength bolts and nuts, hot bending of U-shaped bolts, etc
6. Hot bending of hydraulic pipe fittings, heating and reducing of pipe mouth, hot assembly of products, etc
7. Monorail quenching of small machine tool guide rail, etc.
