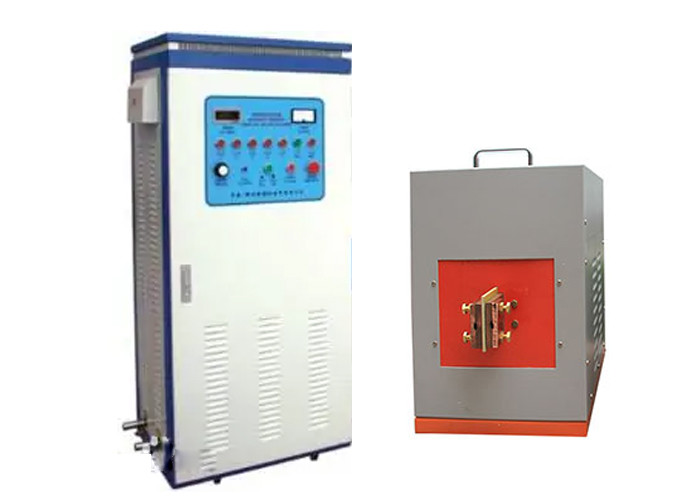

High Frequency Induction Heating Equipment The Faster The Melting Speed, The More Obvious The Power Saving Effect.
Overview of high frequency induction heating equipment:
The application in the field of high-frequency welding is an alternating current with a frequency of 100 kHz to 800 kHz. The power frequency of 50 or 60 Hz is first converted into DC, which is converted into high-frequency AC through the oscillation formed by using a vacuum tube combined with a channel capacitor or through an inverter composed of high-frequency power crystal devices MOSFETs (metal oxide field effect transistors), and forms a steel pipe welding heating source through an output device.
Technical parameters of high frequency induction heating equipment:
Model: LC-GPGY-140KW
Maximum input current: 140A
Input power: 140kW
Oscillation frequency: 31khz
Input voltage: 360v
Host volume: 480mm×380mm×680mm
Cooling water pressure: 0.1-0.3mpa
Cooling water flow (main engine): 15L / min (0.1MPa)
Cooling water flow (transformer): 18L / min (0.1MPa)
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
Advantages of high frequency induction heating equipment:
1. Control core: the world's * * high-speed digital signal processor (hDSP) is generally used, and special chips are used as auxiliary processors.
2. The inverter device generally adopts high-efficiency and fast resonance control mode, the inverter efficiency is greater than 95%, and the power factor of the host is greater than 0.9.
3. The equipment adopts the design structure of air cooling and water cooling.
4. Control mode: fully digital, high-efficiency and fast resonance, which can adapt to sensors of various parameters. The power supply of intelligent equipment generally has a built-in digital PID temperature control module.
5. With IO interface: analog output, analog input, IO output and IO input interface, RS232 or RS485 communication interface.
6. The communication interface can be externally connected with a special * recorder.
7. Power regulation: stepless regulation, 0% ~ 100% adjustable, resolution of 0.1% or 0.01%, output stability of 0.3% or 0.025%.
