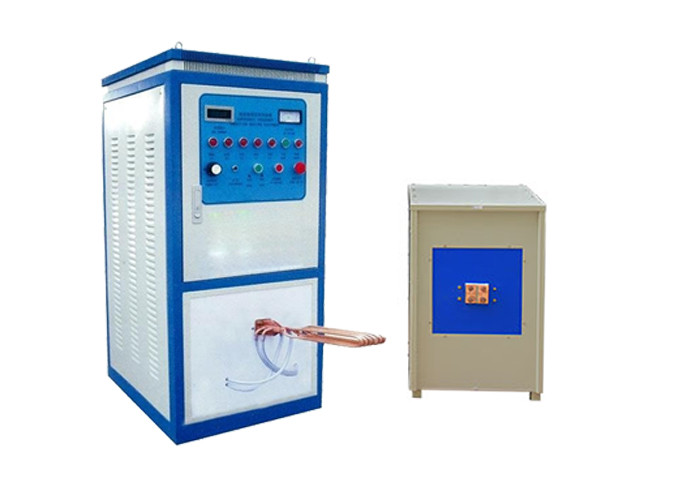

361 Volt 145kW High Frequency Heating Machine For Metal Hot Forming
361 Volt 145kW High Frequency Heating Machine For Metal Hot Forming
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, China
Brand Name: lincheng
Model Number: LC-GPGY-145KW
High Light:

145kW High Frequency Heating Machine

,

361Volt High Frequency Heating Machine

,

Hot Forming High Frequency Heating Machine

Payment & Shipping Terms
Specifications
Model: LC-GPGY-145KW
Input Power: 145kW
Maximum Input Current: 145A
Host Volume: 481mm×381mm×681mm
Input Voltage:: 361v
Oscillation Frequency: 32khz
Product Description

High Frequency Induction Heating Equipment Metal Hot Forming And Heat Treatment Equipment



Overview of high frequency induction heating equipment:

The high-frequency heater adopts a series resonance circuit, and the circuit structure is as follows: after resonance, the high-frequency power supply with low voltage and high current is output through the high-frequency transformer; 15kw and 25kW equipment are * products of our company. MOSFET power devices are used for 15kw power and IGBT power devices are used for 25kW power. The inverter control technology of our company is adopted. The equipment structure is very simple, the reliability is high, the maintenance rate is low, and it is convenient for customers to maintain by themselves. It is one of the most widely used equipment at present



Technical parameters of high frequency induction heating equipment:

Model: LC-GPGY-140KW

Maximum input current: 140A

Input power: 140kW

Oscillation frequency: 31khz

Input voltage: 360v

Host volume: 480mm×380mm×680mm

Cooling water pressure: 0.1-0.3mpa

Cooling water flow (main engine): 15L / min (0.1MPa)

Cooling water flow (transformer): 18L / min (0.1MPa)

Water temperature protection point: 50 ℃

Host weight: 40 ± 5% kg

Efficiency: 90%



Advantages of high frequency induction heating equipment:

1. Control core: the world's * * high-speed digital signal processor (hDSP) is generally used, and special chips are used as auxiliary processors.

2. The inverter device generally adopts high-efficiency and fast resonance control mode, the inverter efficiency is greater than 95%, and the power factor of the host is greater than 0.9.

3. The equipment adopts the design structure of air cooling and water cooling.

4. Control mode: fully digital, high-efficiency and fast resonance, which can adapt to sensors of various parameters. The power supply of intelligent equipment generally has a built-in digital PID temperature control module.

5. With IO interface: analog output, analog input, IO output and IO input interface, RS232 or RS485 communication interface.

6. The communication interface can be externally connected with a special * recorder.

7. Power regulation: stepless regulation, 0% ~ 100% adjustable, resolution of 0.1% or 0.01%, output stability of 0.3% or 0.025%.
