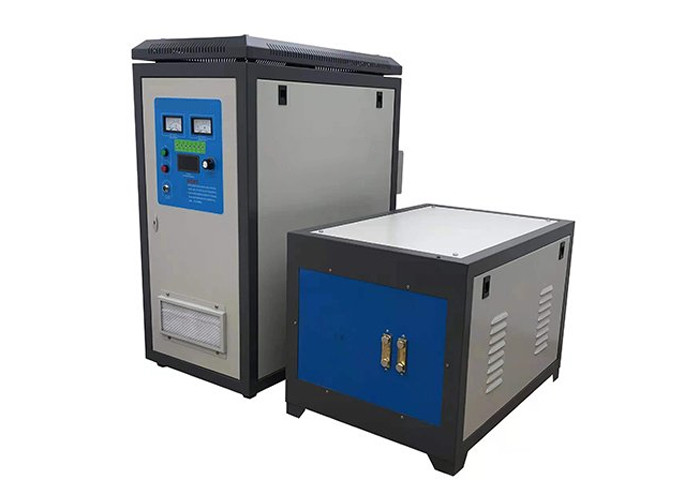

High Frequency Induction Heating Equipment Super Frequency Quenching Machine Energy Saving High Frequency Furnace
Overview of high-frequency induction heating equipment:
A strong magnetic beam with instantaneous polarity change is generated in the high frequency induction coil. The metal to be heat treated is placed in the high frequency coil, and the magnetic beam will pass through the entire heated metal object. A strong eddy current is generated in the interior of the induction heating object in the opposite direction to the induction heating current. Because there is resistance in the metal heated by induction, strong Joule heat energy is generated, which makes the temperature of the object heated by induction rise rapidly, so as to achieve the purpose of heat treatment. Therefore, high-frequency induction heating machine can also be called high-frequency induction heating equipment in the industry
Technical parameters of high frequency induction heating equipment:
Model: LC-GPGY-135KW
Maximum input current: 135A
Input power: 135kW
Oscillation frequency: 30khz
Input voltage: 380v
Host volume: 478mm×378mm×678mm
Cooling water pressure: 0.1-0.3mpa
Cooling water flow (main engine): 15L / min (0.1MPa)
Cooling water flow (transformer): 18L / min (0.1MPa)
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
Features of high-frequency induction heating equipment:
1. IGBT power devices and inverter technology are adopted, with 100% load duration design, and 24-hour operation at maximum power, ensuring high reliability.
2. It is light in weight, small in size and simple in installation. It can be completed in a few minutes by connecting to 380V three-phase power supply, water inlet and water outlet.
3. Especially safe, the output voltage is lower than 36V, avoiding the danger of high-voltage electric shock.
4. The heating efficiency is up to more than 90%, and the energy consumption is only 20% - 30% of the high frequency of the old electronic tubes. There is almost no electricity in standby mode, and it can work continuously for 24 hours.
5. It occupies a small area and is easy to operate. It can be learned in a few minutes.
6. The inductor can be disassembled and replaced freely and quickly, and the ultra fast heating greatly reduces the oxidation deformation of the workpiece.
7. High frequency furnace has the control function of constant current and constant power, which greatly optimizes the metal heating process, realizes efficient and rapid heating, and gives full play to its superior performance.
8. Automatic control type can adjust heating time, heating power, heat preservation time, heat preservation power and cooling time; It greatly improves the quality of heating products and the repeatability of heating, and simplifies the operation technology of workers.
9. The latest environment-friendly products that replace the heating of dangerous goods such as oxygen, acetylene, coal, etc., make it safer to produce without open fire.
10. The equipment has perfect automatic protection functions for over-current, over-voltage, over temperature, water shortage and water shortage, and is equipped with a fault self diagnosis alarm system.
