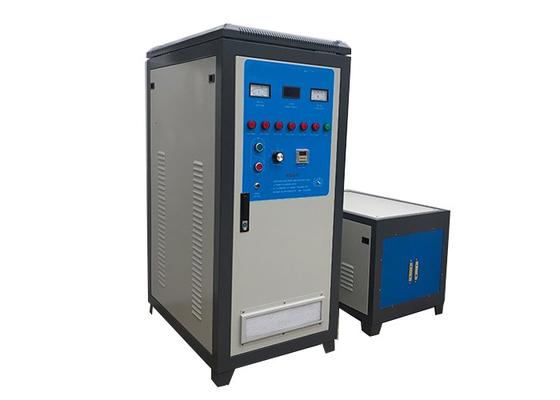

Full Automatic High-Power Annealing, Melting, Welding And Quenching High-Frequency Induction Heating Equipment
Overview of high-frequency induction heating products:
High frequency heating is mainly used for metal heat processing, heat treatment and melting; The high-frequency current flows to the induction loop or other shapes of heating coils formed by winding copper tubes. The alternating electromagnetic field is generated inside the heated materials by electromagnetic induction. The materials to be heated are placed in the induction loop. Magnetic induction generates eddy currents in the materials. The heating purpose is achieved by relying on the energy of these eddy currents
Technical parameters of high frequency induction heating equipment:
Model: LC-GPGY-140KW
Maximum input current: 140A
Input power: 140kW
Oscillation frequency: 32khz
Input voltage: 380v
Host volume: 479mm×379mm×679mm
Cooling water pressure: 0.1-0.3mpa
Cooling water flow (main engine): 15L / min (0.1MPa)
Cooling water flow (transformer): 18L / min (0.1MPa)
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
Advantages of high-frequency induction heating equipment:
1. Fast heating, the fastest heating speed is less than 1s (the speed can be adjusted and controlled);
2. It is easy to install and connect the power supply, induction coil and water inlet and outlet pipes for use; Small size, light weight, easy to use;
3. Wide range of heating can be used to heat various metal workpieces (removable induction coils can be replaced according to different working switches);
4. When the power is controllable, the power can be adjusted to meet the needs of different heating temperatures and speeds
5. Less power consumption is about 70% less than that of the old electronic tube high-frequency equipment. The smaller the workpiece, the less power consumption;
6. The heating can be started after the quick opening water is powered on
7. It can be learned after a few minutes of simple operation;
8. The protection is fully equipped with alarm indications of overvoltage, overcurrent, overheating, water shortage, etc., and is automatically controlled and protected
9. Good effect, very uniform heating, fast temperature rise, less oxide layer, no waste after annealing;
