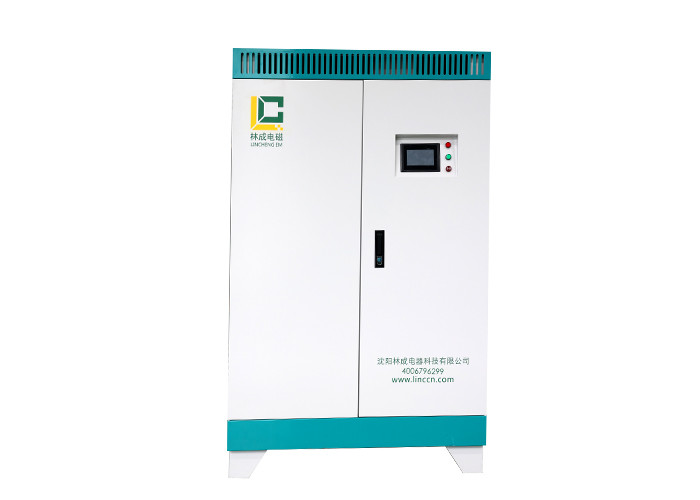

Electric Heater Boiler 60Kw Heating Area: 600-800 ㎡ Safe And Reliable, Safe To Use, No Leakage
Classification Of ElectricHeater Boiler:
Electromagnetic heating is a kind of electric heating. Relatively speaking, it has higher requirements for technicians. Electromagnetic heating is distinguished according to its frequency, scope of use, and material selection.
In terms of frequency, it is generally divided into power frequency, medium frequency and high frequency. Among them, high frequency heating has the best effect in heating.
From the scope of use: it is generally divided into household, commercial and industrial use.
Material selection from design: generally divided into single tube, double tube, half bridge and full bridge circuits.
High frequency electromagnetic heating furnace is also known as ultra audio frequency heating furnace and electromagnetic eddy current heating furnace because of different names.
Electric Heater Boiler Technical Parameter:
Serial number | Product model | Company | LC-L-50kw | LC-L-60kw |
1 | Rated power | KW | 50 | 60 |
2 | Rated current | A | 76 | 91.2 |
3 | Heating area | ㎡ | 500-700 | 600-800 |
4 | input voltage | 50HZ | 380V | 380V |
5 | Minimum flow of water pump configuration | L/min | 32 | 36 |
6 | Hot water yield 50 ℃ | L/min | 23 | 27.6 |
7 | Design thermal efficiency | ℃ | 98% | 98% |
8 | Maximum water temperature | ℃ | 85 | 85 |
9 | Low temperature protection temperature | ℃ | 5 | 5 |
10 | Overall dimension (length * width * height) | mm | 1160L*720W*1700H | 1160L*720W*1700H |
11 | Water inlet and outlet interface | DN | 40 | 40 |
Safety Of Electric Heater Boiler:
1. Electromagnetic induction heating, real separation of water and electricity, circuit and waterway insulation.
2. Low voltage soft start can reduce the harm of current surge impact and avoid damage to equipment due to voltage fluctuation, thus ensuring safety.
3. The variable frequency power output part can automatically adjust the current according to the voltage fluctuation to ensure the constant power, and will not be damaged due to insufficient electrical load due to the rise of voltage and current.
Energy Saving Of Electric Heater Boiler:
High frequency electromagnetic induction heating directly acts on the water tank through electromagnetic induction, making the water tank heat itself, reducing the process of conduction through the medium, with less heat loss and high thermal efficiency, i.e. heating when adding, without heat storage container, and the instantaneous thermal efficiency can be as high as 80%.
Service Life Of Electric Heater Boiler:
Industrial grade electromagnetic, high temperature resistant wire, about 15-20 years of use
