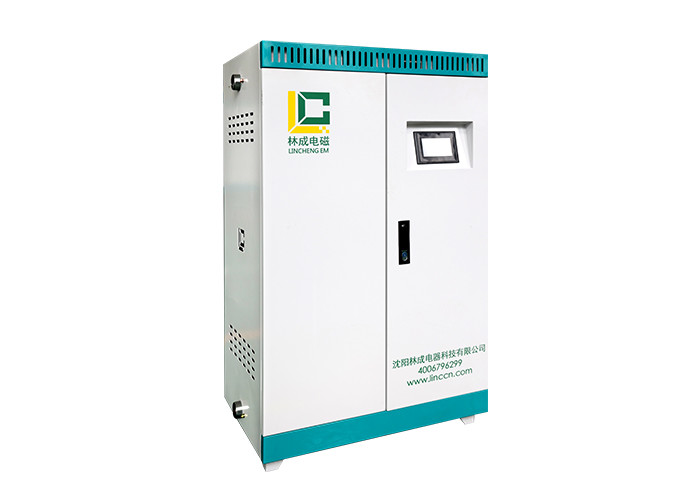

380 Volt 50Hz Energy Efficient Electric Boiler , Electric Residential Boilers 70Kw
discussible
MOQ
discussible
Price
380 Volt 50Hz Energy Efficient Electric Boiler , Electric Residential Boilers 70Kw
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, Liaoning, China
Brand Name: lincheng
Model Number: LC-L-70kw
High Light:

50Hz Energy Efficient Electric Boiler

,

380Volt Energy Efficient Electric Boiler

,

Electric Residential Boilers 70Kw

Payment & Shipping Terms
Packaging Details: Wooden case packing
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Rated Power: 70kw
Heating Area: 700㎡-900㎡
Rated Current: 106.4A
Voltage Frequency: 380V/50Hz
Hot Water Production Rate 50 ℃: 32.5L/min
Upper And Lower Water Interface: 50DN
Product Description

Electric Heater Boiler 70Kw Heating Area: 700-900 ㎡ Easy Operation, Intelligent Temperature Control



Core Principle Of Eectric Heater Boiler:

    The core of the electric heater boiler is a heat generating device that uses the electromagnetic principle and uses the heat generated by the eddy current generated by the magnetic wire cutting metal as the heat source and passes through the heat emission system (such as the water heating system) to achieve the heating purpose.


Electric Heater Boiler Technical Parameter:

Serial number Product model Company LC-L-70kw LC-L-80kw
1 Rated power KW 70 80
2 Rated current A 106.4 121.6
3 Heating area 700-900 800-1000
4 input voltage 50HZ 380V 380V
5 Minimum flow of water pump configuration L/min 32 36
6 Hot water yield 50 ℃ L/min 32.5 36.8
7 Design thermal efficiency 98% 98%
8 Maximum water temperature 85 85
9 Low temperature protection temperature 5 5
10 Overall dimension (length * width * height) mm 1160L*720W*1700H 1160L*720W*1700H
11 Water inlet and outlet interface DN 50 50



Mute Characteristics Of Electric Heater Boiler:

    The frequency of the heating power supply is 20000hz, which exceeds the normal listening frequency of the human body. It not only improves the thermal efficiency, but also is silent and environmentally friendly.



Maintenance Characteristics Of Electric Heater Boiler:

    Electromagnetic induction heating, when working, the core part of the heating is a fixed magnetic field, and the water is magnetized after passing through. The magnetized water structure, the system is maintenance free



Service Life Of Electric Heater Boiler:

    Industrial grade electromagnetic, high temperature resistant wire, about 15-20 years of use
