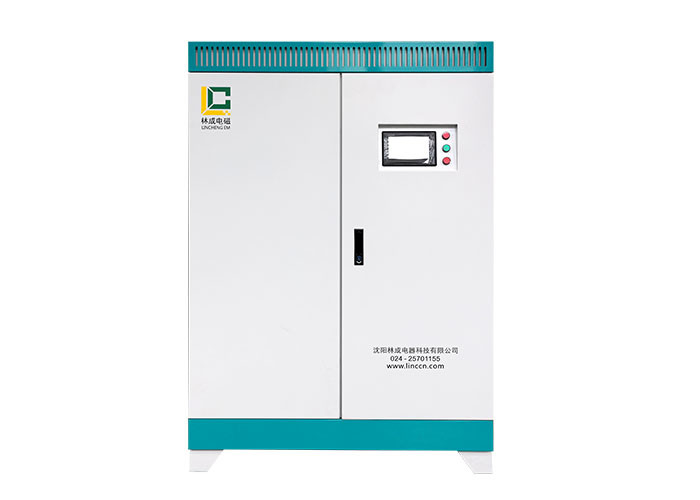

Electric Heater Boiler 120Kw Heating Area: 1200-1500 ㎡ Heating Design Temperature Time Automatic Control
What Are The Product Advantages Of Electric Heater Boiler
Electric heater boiler, intelligent operation control system, electromagnetic coil, electromagnetic heating furnace, heating furnace body and maintenance circuit, and water and electricity separation technology make it more safe, and the environment is healthy, no waste smoke and exhaust gas are discharged, the heating is stable, and the heating is warm. The advantages of the product are safe and reliable. The water and electricity separation of the whole machine, the soft start of the whole machine, no leakage, and the maintenance function of over-current and over temperature up and down pressure.
Electric Heater Boiler Technical Parameter:
Serial number | Product model | Company | LC-L-100kw | LC-L-120kw |
1 | Rated power | KW | 100 | 120 |
2 | Rated current | A | 152 | 182.4 |
3 | Heating area | ㎡ | 1000-1200 | 12 |
4 | input voltage | 50HZ | 380V | 380V |
5 | Minimum flow of water pump configuration | L/min | 92 | 112 |
6 | Hot water yield 50 ℃ | L/min | 46.2 | 56.2 |
7 | Design thermal efficiency | ℃ | 98% | 98% |
8 | Maximum water temperature | ℃ | 85 | 85 |
9 | Low temperature protection temperature | ℃ | 5 | 5 |
10 | Overall dimension (length * width * height) | mm | 1160L*720W*1700H | 1160L*720W*1700H |
11 | Water inlet and outlet interface | DN | 50 | 50 |
Safety Advantages Of Electric Heater Boiler:
The electric heater boiler is safe and reliable. The water and electricity of the whole machine are separated. The whole machine is soft started. It does not generate leakage and has the high and low pressure protection function of overcurrent and overtemperature. The high-efficiency and energy-saving electromagnetic induction technology, high-frequency electromagnetic eddy current heating, the heat conversion efficiency is as high as 97%, the temperature rise speed is extremely fast, the humanized operation interface is intelligent, the operation is simple, and the remote mobile phone app monitoring.
Working Mode Of Electric Heater Boiler:
The electric heater pot is a clean, environment-friendly, energy-saving and efficient heating equipment using the electromagnetic induction heating principle and fully independent intellectual property rights. It is fully automatic microcomputer intelligent control, multi day, multi period and multi parameter timing setting, humanized operation interface and unattended.
