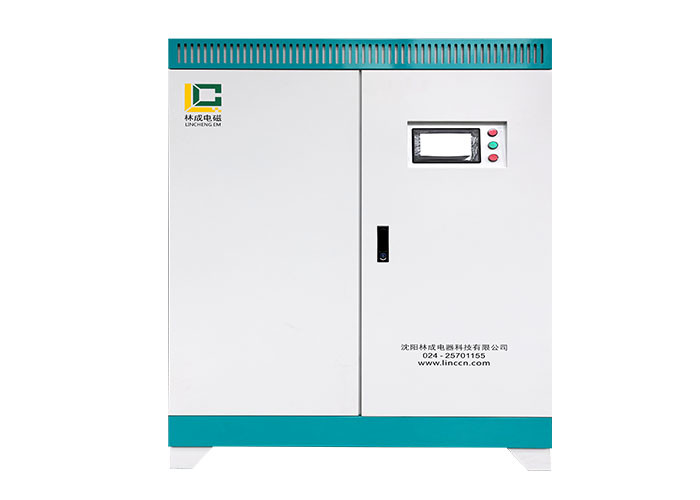

Electric Heater Boiler 160Kw Heating Area: 1600-2000 ㎡ Energy saving and low power consumption
Special Attention Shall Be Paid To The Following When Detecting The Hhigh Eemperature Line Used Inside The Eectric Heater Boiler:
1. The sedimentation environment of the main engine of the electric heater boiler shall not be less than - 20 ℃ and not more than 50 ℃, and dry air shall be circulated.
2. Before connecting the switching power supply: ensure that the total output power required for electrical operation and the total capacity of the power transformer are not higher than the total capacity of the switching power supply, and do not damage the switching power supply as much as possible.
3. The electric heater boiler is afraid of water. Therefore, under normal circumstances, there is no water in the electric boiler. Under all conditions, such things must be avoided. The water vapor and environmental humidity cannot be too heavy. The electromagnetic heating line is also afraid of water. It is absolutely not allowed to touch wet hands or put wet clothes on the electric boiler, g line, etc.
4. There should be no plastic, vinyl or polystyrene foam (other than antistatic type) around the PCB. Electrostatic induction will damage this power circuit. Do not touch the control interface board or the IC power circuit of the control board.
Electric Heater Boiler Technical Parameter:
Serial number | Product model | Company | LC-L-160kw |
1 | Rated power | KW | 160 |
2 | Rated current | A | 243.2 |
3 | Heating area | ㎡ | 1600-2000 |
4 | input voltage | 50HZ | 380V |
5 | Minimum flow of water pump configuration | L/min | 230 |
6 | Hot water yield 50 ℃ | L/min | 74.88 |
7 | Design thermal efficiency | ℃ | 98% |
8 | Maximum water temperature | ℃ | 85 |
9 | Low temperature protection temperature | ℃ | 5 |
10 | Overall dimension (length * width * height) | mm | 1200L*800W*1700H |
11 | Water inlet and outlet interface | DN | 65 |
How To Select Power For Electric Heater Boiler Heating System:
The power of the electric heater boiler must be calculated according to the heat load of the heating room. The heat load is different for different house structures, room heights, lighting areas and room positions. We suggest that the electromagnetic heating boiler can be 14-16m2 / kW for energy-saving buildings, 11-12m2 / kW for ordinary buildings, 9-10m2 / kW for villas and bungalows, and the sealing conditions are poor, The heating area per kilowatt of the electromagnetic heating furnace shall be appropriately reduced for houses with a room height of more than 2.7m or with frequent access to electric heater boilers.
Many users think that the smaller the power of the electric heater boiler, the lower the heating cost. In fact, on the contrary, the larger the power of the electric heater boiler is designed, not to increase the operating cost during the heating period, but to save the operating cost during the heating period. Because the electric heater boiler does not work all the time, it will stop working when the set temperature is reached to maintain the temperature
