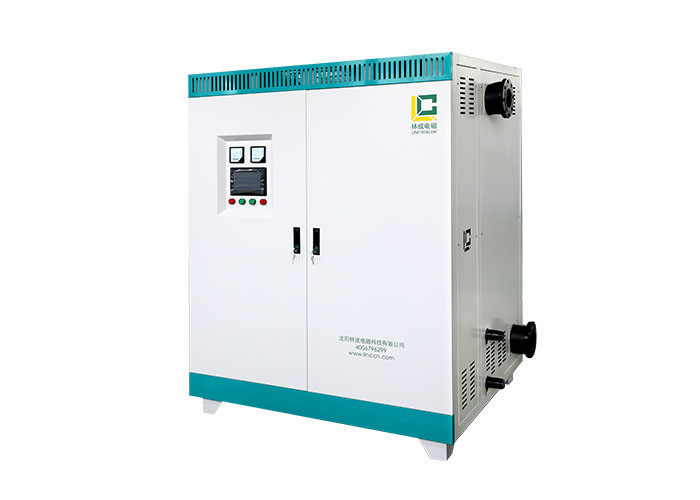

Electric Heater Boiler 300Kw The Service Life Of Electromagnetic Heating Technology Is 15-20 Years
How To Debug The Electric Heater Boiler After Installation:
Check the components and lines, which are relatively intuitive components. Check whether the connecting lines of the components in the control cabinet and the electric heater boiler are in good condition and whether they are not tight. There shall be no short circuit at the wiring.
Stop the change-over switch of the control cabinet, press the emergency stop switch, then check the port on the main circuit breaker and connect the main circuit breaker. If the power indicator light is on, it indicates that it is normal.
Check whether the power supply voltage is normal and whether there is any missing item. Turn on the emergency stop switch, turn on the water pump, check and adjust the rotation direction of the water pump to the correct direction, and put the make-up pump in the automatic position. At this time, the water pump is in the automatic working state. In case of high water level, open the drain valve and wait until the drain reaches the high water temperature until the light goes out.
Before the electric heater boiler is officially put into operation, it should be operated for 4-8 hours. If there is no problem, the installation and commissioning of the boiler can be completed. At this time, the electric heater boiler can be put into normal use
Electric Heater Boiler Technical Parameter:
| Serial number | Product model | Company | LC-L-300kw |
| 1 | Rated power | KW | 300 |
| 2 | Rated current | A | 456 |
| 3 | Heating area | ㎡ | 3000-4000 |
| 4 | input voltage | 50HZ | 380V |
| 5 | Minimum flow of water pump configuration | L/min | 400 |
| 6 | Hot water yield 50 ℃ | L/min | 140.4 |
| 7 | Design thermal efficiency | ℃ | 98% |
| 8 | Maximum water temperature | ℃ | 85 |
| 9 | Low temperature protection temperature | ℃ | 5 |
| 10 | Overall dimension (length * width * height) | mm | 1360L*1100W*1750H |
| 11 | Water inlet and outlet interface | DN | 80 |
Safety Performance Of Electric Heater Boiler:
1. Water shortage protection is required
2. With leakage and electric shock protection
3. Overvoltage protection
5. Grounding protection
6. Antifreeze protection
Advantages Of Electric Heater Boiler:
1. The thermal efficiency of electric heater boiler is higher than that of ordinary electric heating furnace, about 30% higher.
2. The controllability of the electric heater boiler is very strong. It is not only intelligent but also more convenient and fast to use.
3. The electric heater boiler uses the principle of electromagnetic induction to set the required temperature and working period in advance. The boiler can be operated by some intelligent control programs, and the whole process does not need manual supervision.
4. The water and electricity of the electric heater boiler are separated, and the safety is higher, so there is no need to worry about the danger caused by this problem.
5. In terms of boiler maintenance, the electromagnetic boiler has the functions of fault self inspection and system maintenance free. We only need to connect the water pipe and power supply properly.
6. The frequency converter, the core component of the electric heater boiler, has a long service life, so the whole electromagnetic boiler is relatively durable.
7. The electric heater boiler uses the electromagnetic induction principle to generate heat energy, reducing energy consumption and environmental pollution.
8. The water temperature inside the electric heater boiler is flexible in control, but it needs to be adjusted to a suitable mode to meet the demand.
