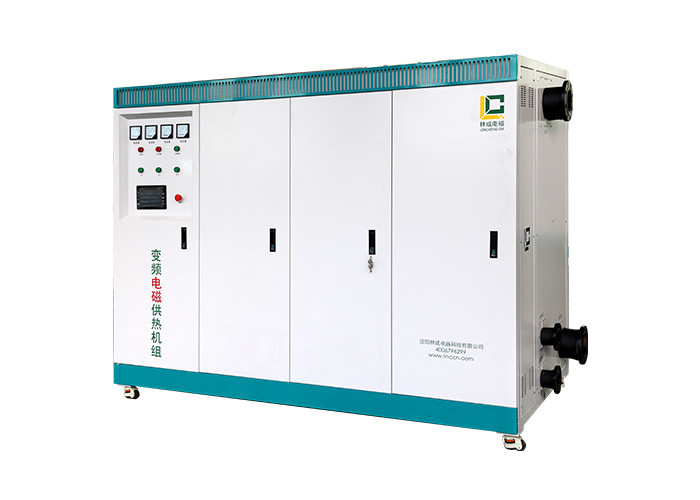

Commercial Electric Boiler Heating System 380V 600Kw For Winter
discussible
MOQ
discussible
Price
Commercial  Electric Boiler Heating System 380V 600Kw For Winter
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, Liaoning, China
Brand Name: lincheng
Model Number: LC-L-600kw
High Light:

Electric Boiler Heating System 380V

,

Electric Boiler Heating System 600Kw

,

Winter electric heating boiler system

Payment & Shipping Terms
Packaging Details: Wooden case packing
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Rated Power: 600kw
Heating Area: 6000㎡-8000㎡
Rated Current: 912A
Hot Water Production Rate 50 ℃: 280.8L/min
Overall Dimensions: 2600mm*1400mm*2000mm(L*W*H)
Sectional Area Of Power Line: ≥450㎡
Product Description

Electric Heater Boiler 600Kw Electric Heating Equipment In Winter



Electric Heater Boiler Technical Parameter:

Serial number Product model Company LC-L-600kw
1 Rated power KW 600
2 Rated current A 912
3 Heating area 6000-8000
4 input voltage 50HZ 380V
5 Minimum flow of water pump configuration L/min 800
6 Hot water yield 50 ℃ L/min 280.8
7 Design thermal efficiency 98%
8 Maximum water temperature 85
9 Low temperature protection temperature 5
10 Overall dimension (length * width * height) mm 2600L*1400W*2000H
11 Water inlet and outlet interface DN 100
