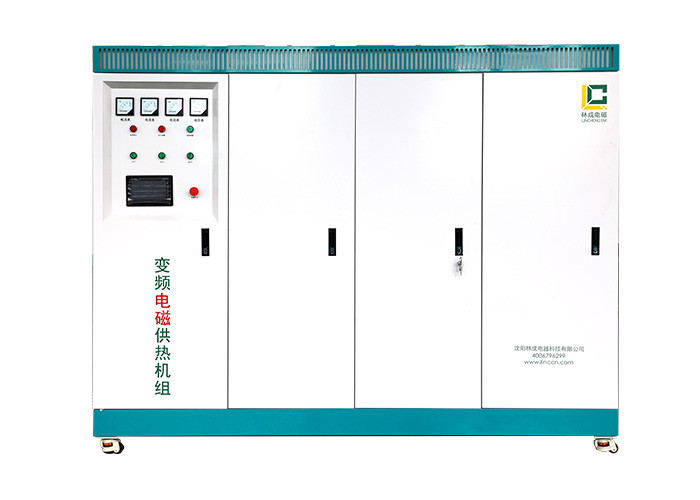

600Kw Industrial Electric Boiler Central Heating System Multifunctional
discussible
MOQ
discussible
Price
600Kw Industrial Electric Boiler Central Heating System Multifunctional
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, Liaoning, China
Brand Name: lincheng
Model Number: LC-L-600kw
High Light:

600Kw Electric Boiler Central Heating System

,

Industrial Electric Boiler Central Heating System

,

Multifunctional electric boiler heating system

Payment & Shipping Terms
Packaging Details: Wooden case packing
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Rated Power: 600kw
Heating Area: 6000㎡-8000㎡
Rated Current: 912A
Hot Water Production Rate 50 ℃: 280.8L/min
Overall Dimensions: 2600mm*1400mm*2000mm(L*W*H)
Sectional Area Of Power Line: ≥450㎡
Product Description

Electric Heater Boiler 600Kw Heating Area: 6000-8000㎡ Safe And Reliable, Safe To Use, No Leakage



Technical Description Of Electric Heater Boiler:

    The heating unit converts electric energy into thermal energy, and stores the thermal energy in the energy storage body. When the medium reaches the set value, the heating will be automatically stopped. When used at any time of the day, the equipment will release the stored thermal energy for use, cut peak and fill valley, save electric energy, and avoid secondary environmental pollution caused by combustion of oil, coal and gas. The temperature is automatically controlled by the heat dissipation circulating pump. If the room temperature is lower than the set temperature, Automatically start the cooling circulation pump, and automatically stop the circulation when the room temperature is higher than the indoor set temperature. During the period when heating is not required, the equipment starts the antifreeze mode.





Electric Heater Boiler Technical Parameter:

Serial number Product model Company LC-L-600kw
1 Rated power KW 600
2 Rated current A 912
3 Heating area 6000-8000
4 input voltage 50HZ 380V
5 Minimum flow of water pump configuration L/min 800
6 Hot water yield 50 ℃ L/min 280.8
7 Design thermal efficiency 98%
8 Maximum water temperature 85
9 Low temperature protection temperature 5
10 Overall dimension (length * width * height) mm 2600L*1400W*2000H
11 Water inlet and outlet interface DN 100





Advantages of electric heater boiler:

1. Strong controllability. Easy operation, intelligent control, no need for special personnel to be on duty, set the time period and temperature as required.

2. Environmental protection. Use clean electric energy without noise, dust and odor.

3. High safety performance. 100% water and electricity separation, fault self inspection, anti freezing, anti dry burning, anti magnetic leakage and other protection.

4. Be patient. When heating, the high-frequency wire is not hot. The design life of the core component frequency converter is long, and the service life of the whole machine is relatively long.

5. Simple safety maintenance. Connect the inlet and outlet pipes and the power supply respectively, and install the electromagnetic water system without maintenance.

6. High comfort. The outlet water temperature can be as high as 90 degrees, the water temperature is automatically controlled, and the heating mode is adjusted with one key, which is comfortable and pleasant.

7. Wide range of use. Small installed power, suitable for all places requiring heating and heating water.
