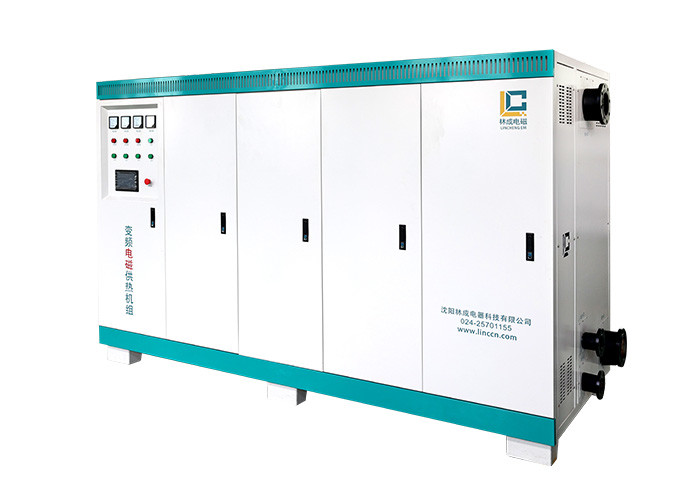

720Kw Electric Hot Water Boiler Heating System Electromagnetic Heating
discussible
MOQ
discussible
Price
720Kw Electric Hot Water Boiler Heating System Electromagnetic Heating
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, Liaoning, China
Brand Name: lincheng
Model Number: LC-L-720kw
High Light:

720Kw hot water heating boiler

,

Electric hot water heating boiler

,

720Kw Electromagnetic electric boiler heating

Payment & Shipping Terms
Packaging Details: Wooden case packing
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Rated Power: 720kw
Heating Area: 7000㎡-12000㎡
Rated Current: 1094.4A
Hot Water Production Rate 50 ℃: 336.9L/min
Overall Dimensions: 3500mm*1200mm*2000mm(L*W*H)
Sectional Area Of Power Line: ≥480㎡
Product Description

Electric Heater Boiler:720Kw Heating Area: 7000-10000㎡ Electromagnetic Heating Of Hot Water Heating Boiler



Advantages Of Electric Heater Boiler:

    Room temperature: 13 ℃ - 20 ℃ appearance design: stainless steel material is beautiful and generous. The product is small in size and beautiful in appearance. It can be placed in the paste hall, bedroom, office and other places. The service life is 10-15 years. Electromagnetic induction heating is adopted for the core part of the heating. The water is magnetized after heating, and no scale is formed. The whole system is free from maintenance. The rated power is adjusted by frequency conversion pulse width. When the voltage is high, the current will automatically decrease, and when the voltage is low, the current will automatically increase, so as to ensure the constant electric power and ensure the service life of the heater and the heating effect of the user





Electric Heater Boiler Technical Parameter:

Serial number Product model Company LC-L-720kw
1 Rated power KW 720
2 Rated current A 1094.4
3 Heating area 7000-10000
4 input voltage 50HZ 380V
5 Minimum flow of water pump configuration L/min 850
6 Hot water yield 50 ℃ L/min 336.9
7 Design thermal efficiency 98%
8 Maximum water temperature 85
9 Low temperature protection temperature 5
10 Overall dimension (length * width * height) mm 3500L*1200W*2000H
11 Water inlet and outlet interface DN 100



Application Scope Of Electric Heater Boiler:

Families, enterprises and institutions, residential buildings, urban village reconstruction, villas and hot water supply units.
