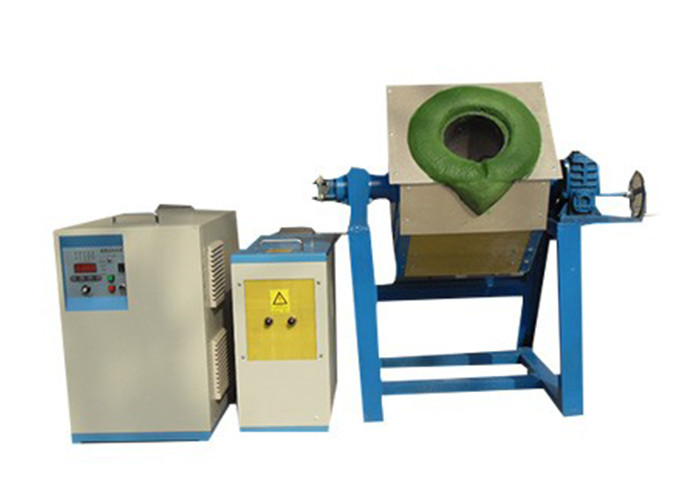

WZP-25 Small Induction Melting Furnace Precious Metal Melting Furnace Copper Scrap Melting Furnace
Small high frequency medium frequency melting furnace, fast melting speed, no open fire, low consumption, energy saving and environmental protection, small size, simple operation, no dust, no loss, harmless to the body, safe and reliable. It can be used without debugging and directly connected with electricity and water. The machine operation is very simple and can be completed in 5 minutes; It is applicable to the melting of iron, steel, copper, aluminum and zinc and the melting of various precious metals, such as gold and silver. It is used in university laboratories, research institutes, hand decoration processing, mold factories, metal processing enterprises, casting processing, small-scale smelting processing, small batch production, personal manual workshop production, school smelting experiments, scientific research institution smelting experiments, precious metal purification, gold and silver bar production and other occasions. It completely solves the problem of coke heating The disadvantages of the original smelting process such as gas heating are ideal equipment for the new generation of metal smelting.
Parameters of small induction smelting furnace:
model | 15 | 25 | 35 | 45 | 70 | 90 | 110 | 160 |
Power | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 160KW |
Input current | 18A | 36A | 57A | 80A | 110A | 140A | 160A | 240A |
DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
input voltage | 380V 50-60HZ | |||||||
Oscillation frequency | 1KHZ-20KHZ | |||||||
Connecting linemm² | 10 | 10 | 16 | 35 | 50 | 75 | 90 | 120 |
Control switch | 50A | 60A | 80A | 120A | 150A | 225A | 225A | 300A |
ground wire mm² | 2mm2 | |||||||
Cooling water pressure | ≥0.2MPa | |||||||
Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min |
