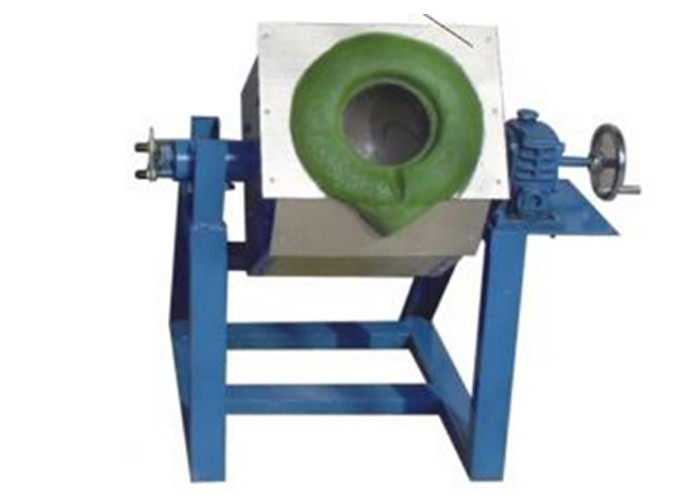

WZP-35 Small Induction Melting Furnace Scrap Melting Furnace Induction Melting Machine
Small Metal Small Induction Melting Furnace:
Small metal induction melting furnace refers to the machinery and equipment that melts metal ingots and some waste metals and adds the required alloy components, and melts them into necessary aluminum alloys through slag scraping, refining and other practical operations. The main features of smelting furnace are: light equipment, faster heating speed and high efficiency; In particular, the power consumption of the same load is 60% less than that of the rectifier tube high-frequency machine; It has various protection functions such as overcurrent, overvoltage and overtemperature. It is convenient to use and install. It is suitable for various places where metal heating is required. In order to ensure the casting quality of metal aluminum alloy, the service life of smelting furnace shall be increased as much as possible. Guangdong Lihua believes that in the actual production process, it is necessary to do a good job in various preparations for the smelting furnace, including furnace loading, heating furnace, furnace washing, furnace cleaning, mixing, slag removal and refining.
Parameters of small induction smelting furnace:
model | 15 | 25 | 35 | 45 | 70 | 90 | 110 | 160 |
Power | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 160KW |
Input current | 18A | 36A | 57A | 80A | 110A | 140A | 160A | 240A |
DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
input voltage | 380V 50-60HZ | |||||||
Oscillation frequency | 1KHZ-20KHZ | |||||||
Connecting linemm² | 10 | 10 | 16 | 35 | 50 | 75 | 90 | 120 |
Control switch | 50A | 60A | 80A | 120A | 150A | 225A | 225A | 300A |
ground wire mm² | 2mm2 | |||||||
Cooling water pressure | ≥0.2MPa | |||||||
Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min |
