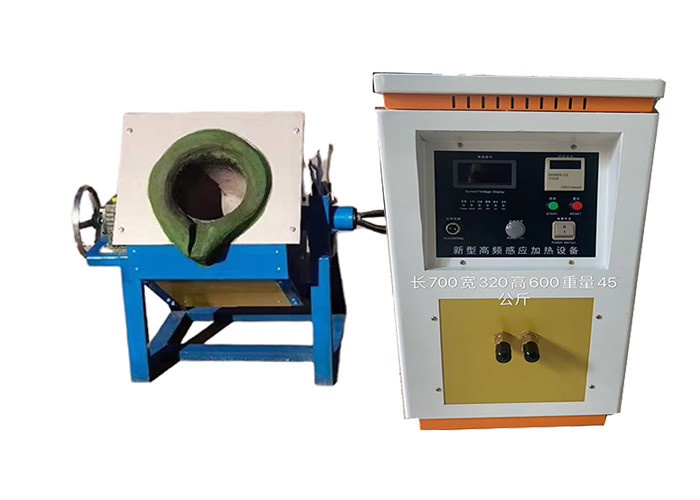

Small Induction Melting Furnace Metal Induction Furnace For Aluminium Melting Metal Melting Furnace
Machine Commissioning Of Small Induction Smelting Furnace:
The mechanical system, hydraulic system, electrical system and water-cooling system of the small induction smelting furnace must be well commissioned before the furnace is built, and the cold state test without furnace lining shall be conducted. The alarm value is set for the alarm device signal. Eliminate unexpected faults that may occur in the operation of small induction smelting furnace.
Parameters of small induction smelting furnace:
model | 15 | 25 | 35 | 45 | 70 | 90 | 110 | 140 |
Power | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 140KW |
Input current | 18A | 36A | 57A | 80A | 110A | 140A | 160A | 280A |
DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
input voltage | 380V 50-60HZ | |||||||
Oscillation frequency | 1KHZ-20KHZ | |||||||
Connecting linemm² | 10 | 10 | 16 | 35 | 50 | 75 | 90 | 140 |
Control switch | 50A | 60A | 80A | 120A | 150A | 225A | 225A | 330A |
ground wire mm² | 2mm2 | |||||||
Cooling water pressure | ≥0.2MPa | |||||||
Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min |
Application Of Small Induction Smelting Furnace:
1. Annealing of various stainless steel industries. Such as annealing and stretching of stainless steel pots and cans, annealing and edging, annealing of water tanks, stainless steel pipes, stainless steel tableware, stainless steel cups, etc;
2. Annealing of other various metal workpieces. Such as golf head, golf club, copper lock head, hardware copper accessories, kitchen knife handle, blade, aluminum pot, aluminum bucket, aluminum radiator and various aluminum products v. metal smelting: gold, silver, copper, iron, aluminum and other metals (vacuum) smelting, powder metallurgy sintering and metal smelting.
