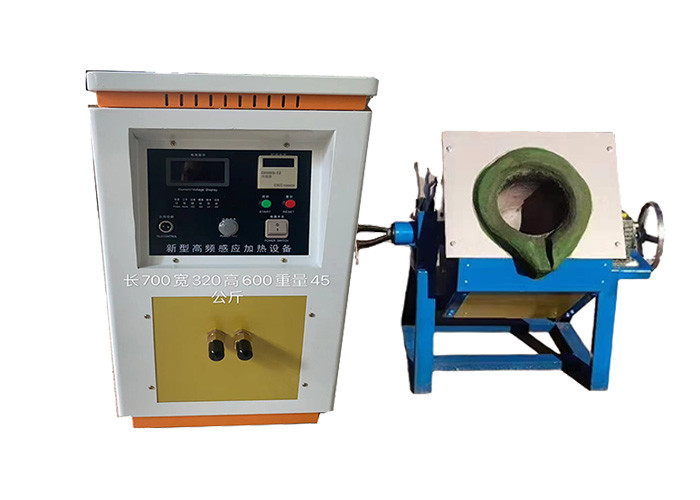

Small Induction Melting Furnace Metal Small Induction Heating Gold Melting Machine Supports Customization
Equipment Composition Of Small Induction Smelting Furnace:
The small induction smelting furnace is composed of medium frequency power supply, capacitor bank, water-cooled cable, connecting copper bar, inductor coil, movable furnace body, fixed support, magnetic yoke, furnace leakage alarm, water temperature alarm, furnace lining material, hydraulic system, tilting operation platform, hydraulic oil cylinder, circulating cooling water, etc.
Parameters of small induction smelting furnace:
model | 15 | 25 | 35 | 45 | 70 | 90 | 110 | 160 |
Power | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 160KW |
Input current | 18A | 36A | 57A | 80A | 110A | 140A | 160A | 240A |
DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
input voltage | 380V 50-60HZ | |||||||
Oscillation frequency | 1KHZ-20KHZ | |||||||
Connecting linemm² | 10 | 10 | 16 | 35 | 50 | 75 | 90 | 120 |
Control switch | 50A | 60A | 80A | 120A | 150A | 225A | 225A | 300A |
ground wire mm² | 2mm2 | |||||||
Cooling water pressure | ≥0.2MPa | |||||||
Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min |
Application Of Small Induction Smelting Furnace:
1. Annealing of various stainless steel industries. Such as annealing and stretching of stainless steel pots and cans, annealing and edging, annealing of water tanks, stainless steel pipes, stainless steel tableware, stainless steel cups, etc;
2. Annealing of other various metal workpieces. Such as golf head, golf club, copper lock head, hardware copper accessories, kitchen knife handle, blade, aluminum pot, aluminum bucket, aluminum radiator and various aluminum products v. metal smelting: gold, silver, copper, iron, aluminum and other metals (vacuum) smelting, powder metallurgy sintering and metal smelting.
