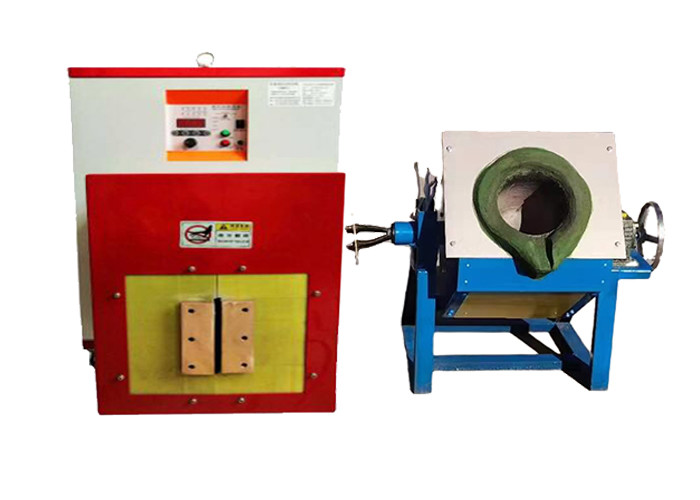

Small Induction Melting Furnace Steel Melting Induction Furnace Small Steel Melting Furnace
Introduction To Small Induction Smelting Furnace Equipment:
The small induction melting furnace is a non-standard induction heating equipment that uses the principle of medium frequency electromagnetic heating to heat molten metal. The equipment is aimed at melting metal and has the characteristics of fast melting speed, convenient variety change, and ready to use. It has become a standard equipment for metal melting in the casting industry and an indispensable heating equipment in the casting industry
Parameters of small induction smelting furnace:
model | 15 | 25 | 35 | 45 | 70 | 90 | 110 | 160 |
Power | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 160KW |
Input current | 18A | 36A | 57A | 80A | 110A | 140A | 160A | 240A |
DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
input voltage | 380V 50-60HZ | |||||||
Oscillation frequency | 1KHZ-20KHZ | |||||||
Connecting linemm² | 10 | 10 | 16 | 35 | 50 | 75 | 90 | 120 |
Control switch | 50A | 60A | 80A | 120A | 150A | 225A | 225A | 300A |
ground wire mm² | 2mm2 | |||||||
Cooling water pressure | ≥0.2MPa | |||||||
Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min |
Equipment Composition Of Small Induction Smelting Furnace:
The medium frequency induction smelting furnace is composed of medium frequency power supply, capacitor bank, water-cooled cable, connecting copper bar, inductor coil, movable furnace body, fixed support, magnetic yoke, furnace leakage alarm, water temperature alarm, furnace lining material, hydraulic system, furnace tilting console, hydraulic oil cylinder, circulating cooling water, etc.
