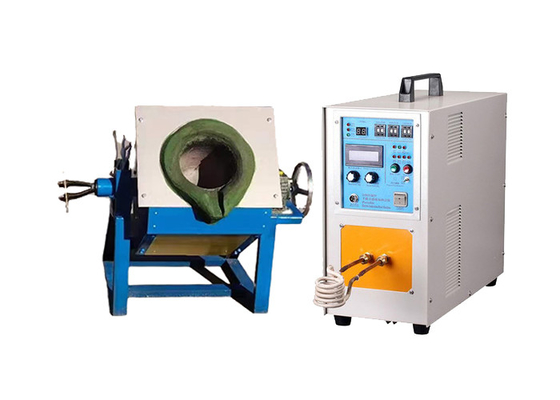

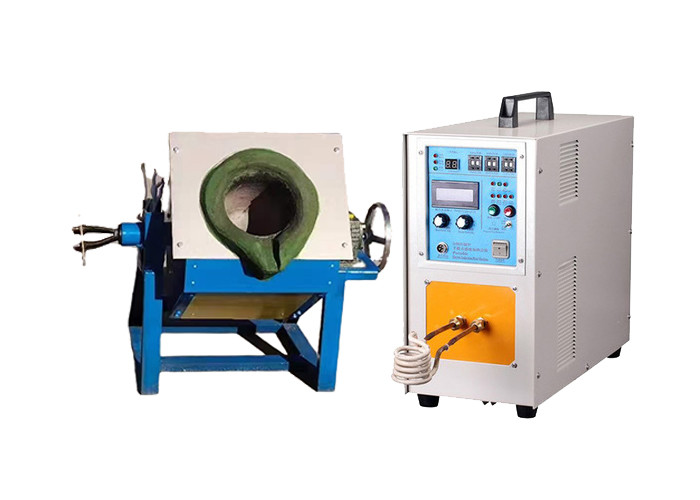

Small Induction Melting Furnace Gold Induction Melting Furnace High Frequency Induction Melting Furnace
Advantages Of Small Induction Smelting Furnace Equipment:
The imported Infineon IGBT induction heating power supply is used to replace the traditional flame coal smelting by 24-hour stable operation, saving 3 times the cost of electric energy melting, and the smelting process is smoke-free, dust-free and pollution-free.
Parameters of small induction smelting furnace:
model | 15 | 25 | 35 | 45 | 70 | 90 | 110 | 170 |
Power | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 170KW |
Input current | 18A | 36A | 57A | 80A | 110A | 140A | 160A | 240A |
DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
input voltage | 380V 50-60HZ | |||||||
Oscillation frequency | 1KHZ-20KHZ | |||||||
Connecting linemm² | 10 | 10 | 16 | 35 | 50 | 75 | 90 | 120 |
Control switch | 50A | 60A | 80A | 120A | 150A | 225A | 225A | 300A |
ground wire mm² | 2mm2 | |||||||
Cooling water pressure | ≥0.2MPa | |||||||
Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min |
Equipment Composition Of Small Induction Smelting Furnace:
The medium frequency induction smelting furnace is composed of medium frequency power supply, capacitor bank, water-cooled cable, connecting copper bar, inductor coil, movable furnace body, fixed support, magnetic yoke, furnace leakage alarm, water temperature alarm, furnace lining material, hydraulic system, furnace tilting console, hydraulic oil cylinder, circulating cooling water, etc.
