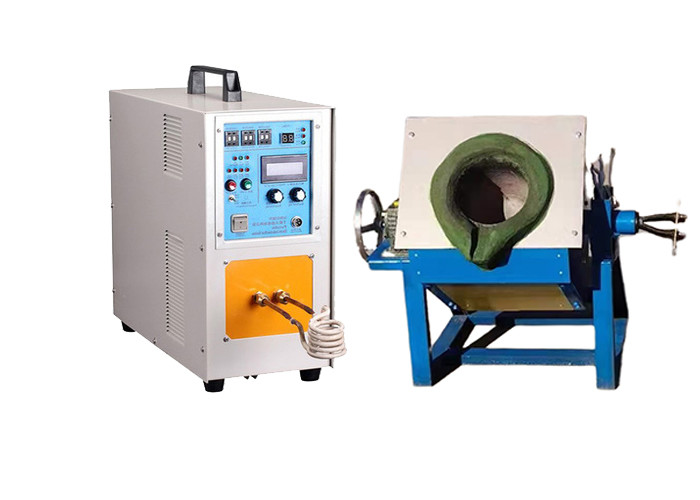

Small Induction Melting Furnace High Frequency Induction Melting Furnace Gold Melting Induction Furnace
Advantages Of Small Induction Smelting Furnace Equipment:
1. Fast heating speed: the fastest heating speed is less than 0.1 seconds, and the heating speed can be adjusted;
2. Wide application: it can heat various metal products (choose different frequency equipment according to industrial requirements)
3. Good effect: the working surface is heated evenly and quickly, reducing the oxidation layer of gongzu instant noodles and the deformation degree of the work;
4. High efficiency: the equipment has automatic setting function, and Cao's group can be completed by one person, thus reducing the process and improving the work efficiency;
Parameters of small induction smelting furnace:
model | 15 | 25 | 35 | 45 | 70 | 90 | 110 | 170 |
Power | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 170KW |
Input current | 18A | 36A | 57A | 80A | 110A | 140A | 160A | 240A |
DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
input voltage | 380V 50-60HZ | |||||||
Oscillation frequency | 1KHZ-20KHZ | |||||||
Connecting linemm² | 10 | 10 | 16 | 35 | 50 | 75 | 90 | 120 |
Control switch | 50A | 60A | 80A | 120A | 150A | 225A | 225A | 300A |
ground wire mm² | 2mm2 | |||||||
Cooling water pressure | ≥0.2MPa | |||||||
Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min |
Equipment Composition Of Small Induction Smelting Furnace:
The medium frequency induction smelting furnace is composed of medium frequency power supply, capacitor bank, water-cooled cable, connecting copper bar, inductor coil, movable furnace body, fixed support, magnetic yoke, furnace leakage alarm, water temperature alarm, furnace lining material, hydraulic system, furnace tilting console, hydraulic oil cylinder, circulating cooling water, etc.
