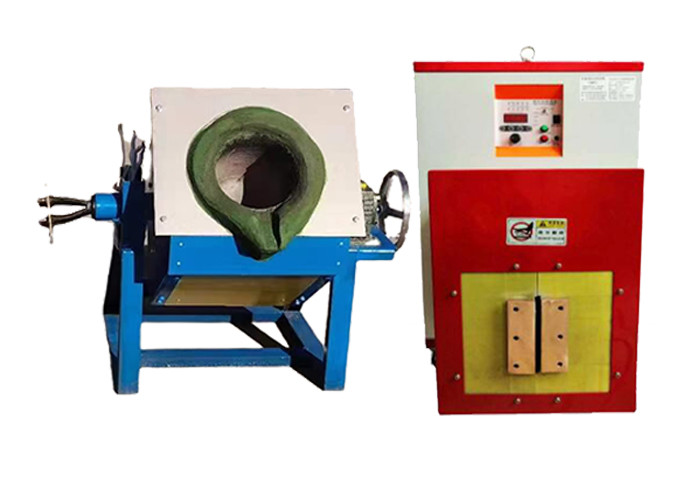

Small Induction Melting Furnace Medium Frequency Induction Melting Furnace Small Furnace For Melting Metal
Main Features Of Small Induction Smelting Furnace:
Light equipment, fast heating speed and high efficiency; Special power saving, 60% less power consumption than the electronic tube high-frequency machine with the same load; It has a variety of protection functions such as overcurrent, overvoltage and overheating. It is simple to operate and easy to install. It is suitable for various occasions where metal needs to be heated.
Parameters of small induction smelting furnace:
model | 15 | 25 | 35 | 45 | 70 | 90 | 110 | 190 |
Power | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 190KW |
Input current | 18A | 36A | 57A | 80A | 110A | 140A | 160A | 340A |
DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
input voltage | 380V 50-60HZ | |||||||
Oscillation frequency | 1KHZ-20KHZ | |||||||
Connecting linemm² | 10 | 10 | 16 | 35 | 50 | 75 | 90 | 180 |
Control switch | 50A | 60A | 80A | 120A | 150A | 225A | 225A | 400A |
ground wire mm² | 2mm2 | |||||||
Cooling water pressure | ≥0.2MPa | |||||||
Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min |
Advantages Of Small Induction Smelting Furnace:
① The melting speed should be faster;
② The ratio of the surface area of the molten pool to the depth of the molten pool should be as small as possible;
③ The metal temperature in the molten pool shall be uniform;
④ The thermal efficiency of the furnace shall be high;
⑤ The process is easy to operate, and all processes of charging and smelting shall be operated by mechanized and automatic methods as far as possible;
⑥ The chemical stability and various properties of the furnace masonry can ensure the quality of the melt
