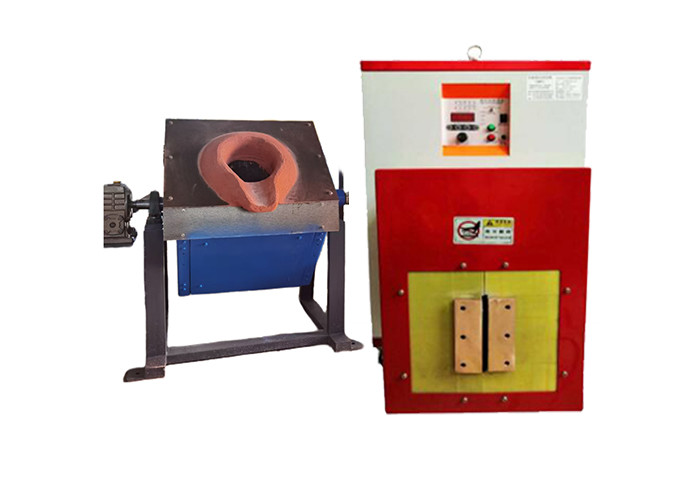

Electric Small Induction Furnace , Induction Heater Melting Metal 950 Degree
discussible
MOQ
discussible
Price
Electric Small Induction Furnace , Induction Heater Melting Metal 950 Degree
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, China
Brand Name: lincheng
Model Number: LC-WZP-210
High Light:

Electric Small Induction Furnace

,

Metal Small Induction Furnace

,

Induction Heater Melting Metal 950 Degree

Payment & Shipping Terms
Packaging Details: Wooden case packaging
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Model: LC-WZP-210
Power: 210KW
Heating Principle: Induction Heating
Weight: 35kg
Temperature:: 950℃
Heating Form: Electric Heating
Product Description

Small Induction Melting Furnace Megatherm Induction Furnace Small Induction Furnace



Main Features Of Small Induction Smelting Furnace:

    Light equipment, fast heating speed and high efficiency; Special power saving, 60% less power consumption than the electronic tube high-frequency machine with the same load; It has a variety of protection functions such as overcurrent, overvoltage and overheating. It is simple to operate and easy to install. It is suitable for various occasions where metal needs to be heated.



Parameters of small induction smelting furnace:

model 15 25 35 45 70 90 110 210
Power 15KW 25KW 35KW 45KW 70KW 90KW 110KW 210KW
Input current 18A 36A 57A 80A 110A 140A 160A 400A
DC voltage 550V 550V 550V 550V 550V 550V 550V 550V
input voltage 380V 50-60HZ
Oscillation frequency 1KHZ-20KHZ
Connecting linemm² 10 10 16 35 50 75 90 180
Control switch 50A 60A 80A 120A 150A 225A 225A 430A
ground wire mm² 2mm2
Cooling water pressure ≥0.2MPa
Cooling water flow ≥10L/Min ≥2151/Min ≥220L/Min



Advantages Of Small Induction Smelting Furnace:

    ① The melting speed should be faster;

    ② The ratio of the surface area of the molten pool to the depth of the molten pool should be as small as possible;

    ③ The metal temperature in the molten pool shall be uniform;

    ④ The thermal efficiency of the furnace shall be high;

    ⑤ The process is easy to operate, and all processes of charging and smelting shall be operated by mechanized and automatic methods as far as possible;

    ⑥ The chemical stability and various properties of the furnace masonry can ensure the quality of the melt
