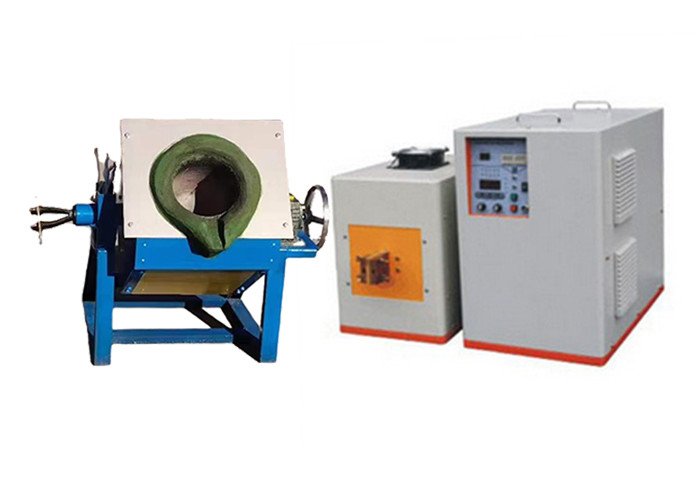

220KW Cast Iron Small Induction Melting Furnace Medium Frequency
discussible
MOQ
discussible
Price
220KW Cast Iron Small Induction Melting Furnace Medium Frequency
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, China
Brand Name: lincheng
Model Number: LC-WZP-220
High Light:

Cast Iron Small Induction Melting Furnace

,

220KW Small Induction Melting Furnace

,

Medium Frequency cast iron melting furnace

Payment & Shipping Terms
Packaging Details: Wooden case packaging
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Model: LC-WZP-220
Power: 220KW
Heating Principle: Induction Heating
Weight: 40kg
Temperature:: 750℃
Heating Form: Electric Heating
Product Description

Small Induction Melting Furnace Medium Frequency Induction Melting Furnace cast Iron Melting Furnace



Introduction To Small Induction Smelting Furnace:

    200 ~ 2500Hz medium frequency power supply is used for induction heating, with a power range of 20 ~ 2500kw. It can also be called medium frequency electric furnace according to its characteristics. It is mainly used for smelting and temperature raising of precious metals such as gold, platinum, silver, copper, iron, stainless steel, aluminum alloy, aluminum and other metals. It is an ideal equipment for university laboratories, research institutes, hand decoration processing and precision casting processing. The power supply adopts IGBT imported power devices, which is more integrated and miniaturized. The effective output power reaches more than 90%, saving power and energy. It is 60% more energy-saving than the traditional thyristor if!



Parameters of small induction smelting furnace:

model 15 25 35 45 70 90 110 220
Power 15KW 25KW 35KW 45KW 70KW 90KW 110KW 220KW
Input current 18A 36A 57A 80A 110A 140A 160A 400A
DC voltage 550V 550V 550V 550V 550V 550V 550V 550V
input voltage 380V 50-60HZ
Oscillation frequency 1KHZ-20KHZ
Connecting linemm² 10 10 16 35 50 75 90 180
Control switch 50A 60A 80A 120A 150A 225A 225A 430A
ground wire mm² 2mm2
Cooling water pressure ≥0.2MPa
Cooling water flow ≥10L/Min ≥2151/Min ≥220L/Min



Advantages Of Small Induction Smelting Furnace:

    ① The melting speed should be faster;

    ② The ratio of the surface area of the molten pool to the depth of the molten pool should be as small as possible;

    ③ The metal temperature in the molten pool shall be uniform;

    ④ The thermal efficiency of the furnace shall be high;

    ⑤ The process is easy to operate, and all processes of charging and smelting shall be operated by mechanized and automatic methods as far as possible;

    ⑥ The chemical stability and various properties of the furnace masonry can ensure the quality of the melt
